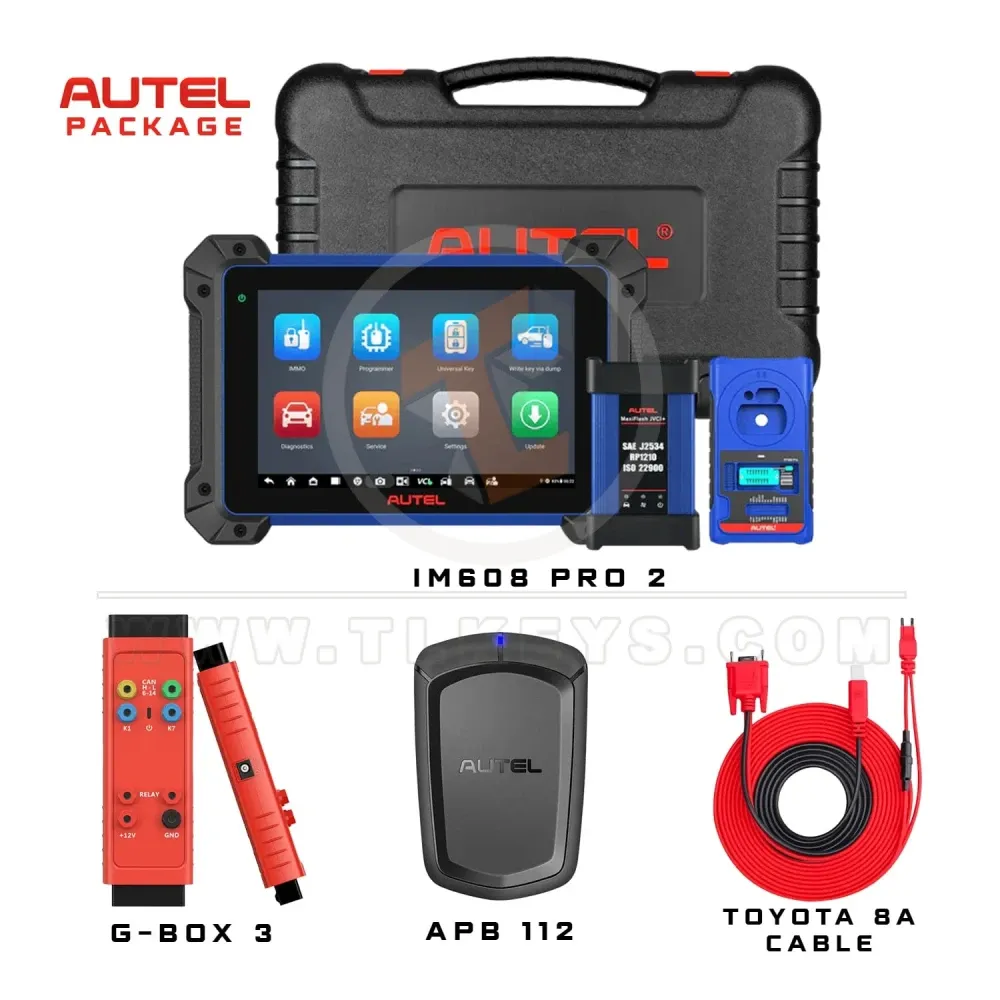

Autel MaxiIM IM608 PRO II – Specifications & Overview
Manufacturer: Autel
Condition: Brand New
Comparison: Autel IM608 PRO II vs. Autel IM608 PRO
-
The IM608 PRO II has upgraded firmware, Android 10, increased RAM and ROM, and a new JVCI+ VCI interface.
-
It supports CAN protocol for reading/writing without the need for a password.
-
Features built-in DoIP and CAN FD protocols – no external converters required.
-
Supports Remote Expert functionality.
Highlights of the Autel IM608 PRO II
-
Also known as: IM608 II = IM608 PRO II = IM608S II
-
An enhanced version of the original IM608 and IM608 PRO, boasting the latest and most powerful hardware.
-
Offers both Smart Mode and Expert Mode for flexible, user-friendly operation.
-
Compatible with 85% of global vehicle brands, including BMW, Mercedes-Benz, VW, Audi, and more – making it the perfect solution for locksmiths and workshops.
-
Compatible with Autel MaxiVideo MV108/MV105 for visual inspection of hard-to-reach areas. Captures digital images and videos for fast, safe equipment and infrastructure checks.
IM608 PRO II – Key Features:
-
IMMO & Key Programming Bundle for U.S., Asian, and European vehicles
-
Bi-directional Control / Active Tests
-
Full System Diagnostics
-
OE-Level Services and Advanced Programming
IMMO Functions:
-
Auto-detect Make/Model/Year/System
-
Read PIN (All Key Lost)
-
Key Learning
-
IMMO ECU Reset / Adaptation
-
IMMO ECU Refresh / Coding
-
Remote Learning
Supported Vehicle Functions:
-
Audi Q5/A4/A5 (2015–2017) Key Learning
-
VW MQB Key Learning
-
BMW FEM/BDC & CAS4 Key Learning/Adaptation
-
Mercedes-Benz Key Learning
-
Jaguar/Land Rover (2015–2018) Key Writing via Dump
-
Volvo Smart/Knob-style Key Learning
Advanced Programming Functions:
-
EEPROM Read/Write
-
MCU Read/Write
-
Key Programming & Remote Frequency Detection
-
Mercedes-Benz Key Read/Write
-
ECU Coding and VW/Audi Component Protection
XP400Pro Extended Chip Support:
-
APB113: PCF79XX Adapter Board
-
APB114: EWS3 Adapter
-
APB115: NEC Adapter
-
APB118: NEC ELV Adapter
-
APB119: TB28FXXX Adapter
-
APB120: TMS370 Adapter
-
APB121/APB122/APB123: AM29FXXX Adapters
-
APB126: M35080/D80 Adapter
-
APB127: MC68HC(0)5BXX Adapter
-
APB128: MC68HC05X32 Adapter
Complete Service Functions:
-
Oil Service Reset
-
Parking Brake Pad Relearn
-
Steering Angle Sensor Calibration
-
Battery Registration & Reset
-
DPF Regeneration
-
TPMS (Tire Pressure Monitoring System)
-
Active Tests
Vehicle Coverage (IMMO & Diagnostics for 10,000+ Models, Up to 2020):
-
Mercedes-Benz – 3rd Gen IMMO CAN/K-Line Add Key & All Key Lost via OBD
-
BMW – EWS3/4, CAS1/2/3/4, FEM/BDC Add Key & All Key Lost
-
VW/Audi (2013–2020) – Add Key & All Key Lost via OBD
-
GM – Read IMMO Password, Add Key/All Key Lost
-
Ford – Add Key/All Key Lost without PIN
-
Mazda – Add Key/All Key Lost without PIN
-
FCA (Chrysler/Dodge/Jeep) – Add Key/All Key Lost with PIN Read
-
Renault – Add Key without PIN
-
Jaguar/Land Rover – Add Key/All Key Lost up to 2019
-
Volvo – Semi-smart Key Learning via OBD (up to 2018), Full key support via dump
Item | Autel IM608 PRO II/ IM608 II/ IM608S II | Autel IM608 PRO/ IM608 | Autel IM508 | Autel KM100 |
---|---|---|---|---|
Hardware | Touch screen tablet & programmer | Touch screen tablet & programmer | Touch screen tablet & programmer | Touch screen handset |
VCI | √ (Bluetooth connection) | √ (Bluetooth connection) | √ (wire connection) | √ (Bluetooth connection) |
Automatic scan | √ | √ | √ | √ |
Immo scan | √ | √ | √ | √ |
Immo function | Support program keys by OBD/on-bench/boot, immo part replacement | Support program keys by OBD/on-bench/boot, immo part replacement | Support program keys by OBD/on-bench/boot, immo part replacement | Support program keys by OBD |
Diagnostic function | Medium diagnosis, BMW & Benz immo programming | Medium diagnosis, BMW & Benz immo programming | Basic diagnosis | × |
Remote expert | √ (coming soon) | × | × | × |
Processor | Qualcomm SDM660 Octa-core | Samsung Exynos T5260 6-Core | Rockchip RK3188 Quad core | PX30 4x ARM Cortex-A35 |
System | Android 10.0 | Android 4.4.2, KitKat | Android 4.4.4 | Android 9.0 |
RAM | 4G | 2G | 1G | 2G |
ROM | 128G | 64G | 32G (64G after 2021) | 64G |
Screen | 10.1in, 1920x1200 | 10.1in, 1920x1200 | 7in, 1024x600 | 5.5in, 1280x700 |
WiFi | √ | √ | √ | √ |
Bluetooth | V5.0+BR/EDR | V2.1+EDR | × | √ |
USB | USB 2.0 (2 host, 1 mini) | USB 2.0 (2 host, 1 mini) | USB 2.0 (1 host, 1 mini) | × |
HDMI | HDMI 2.0 | HDMI 1.4A | × | × |
SD Card | √ (up to 64G) | √ (up to 32G) | √ (up to 32G) | × |
Headphone jack | √ | √ | × | × |
Microphone | 1MIC | 1MIC | × | × |
Loudspeaker | 2 | 2 | × | × |
GPS | √ | × | × | × |
Light sensation | √ | √ | × | × |
Buttons | 1 power button | 1 power button | 1 power button | × |
Battery | 3.8V, 15000mAh | 3.8V, 15000mAh | 3.7V, 5000mAh | 4950mAh |
Camera | Rear 16MP, AF with flashlight | Rear 8MP, AF with flashlight | × | × |
Lower computer | JVCI+ | JVCI | All-in-one | × |
Programmer | XP400 PRO | XP400 PRO | XP200 | V200 |
Connection | Bluetooth/USB | Bluetooth/USB | All-in-one | Bluetooth |
Read & write EEPROM | √ | √ | √ | × |
Read & write MCU | √ | √ | √ (less coverage) | × |
Read & write ECU | √ | √ | √ (less coverage) | × |
Read & write immo module | √ | √ | √ (less coverage) | × |
Read & write instrument/ airbag module | √ | √ | √ (less coverage) | × |
Key identify | √ | √ | √ (less coverage) | √ |
Read by eeprom | √ | √ | × | × |
Refresh key | √ | √ | √ (need XP400 PRO) | √ |
Detect frequency | √ | √ | √ (need XP400 PRO) | √ |
Generate transponder | √ (need XP200/XP400...) | √ (need XP200/XP400...) | √ (need XP200/XP400...) | √ |

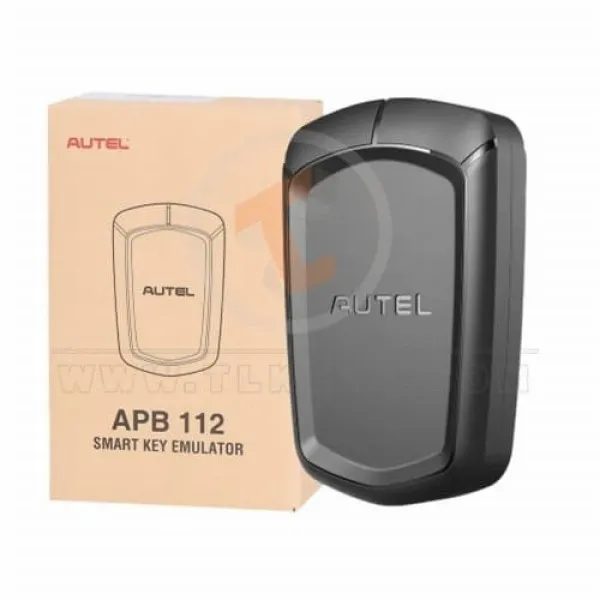

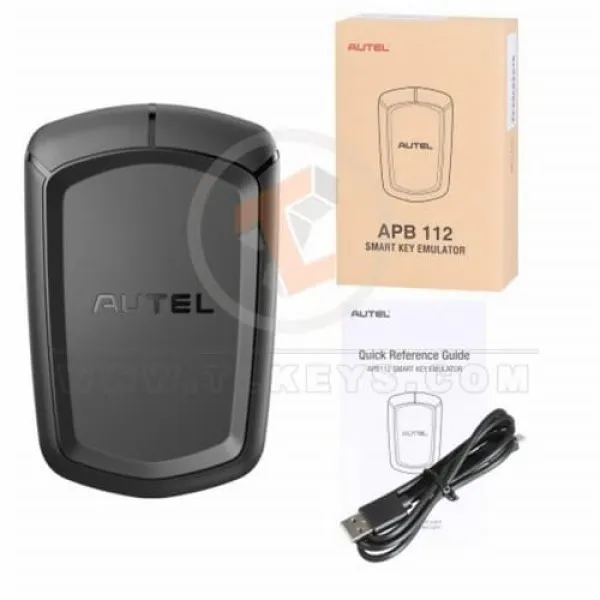

Transponder simulation | √ (need APB112) | √ (need APB112) | √ (need APB112) | √ |
Detect ignition coil | √ (need APB112) | √ (need APB112) | × | √ |
Auto VIN | √ | √ | √ | × |
Read & clear fault codes | √ | √ | √ | × |
Live data | √ | √ | √ | × |
Freeze frame | √ | √ | √ | × |
Read ECU info | √ | √ | √ | × |
Action test | √ | √ | √ | × |
Services | √ | √ | √ | × |
Special function | √ | √ | √ | × |
Online coding | √ | √ | × | × |
Offline coding | √ | √ | × | × |
Hidden features | √ | √ | × | × |
Guidance | √ | √ | × | × |
Online programming | √ (partial Benz/BMW) | √ (IM608 Pro supports partial Benz/BMW) | × | × |
Report manage | √ | √ | √ | × |
Other functions | Scan VIN, scan license, remote desk. D-PDU, RP1210, DoIP, CANFD diagnostic standard (Note: DoIP/CANFD needs adapter on some) |
|||
Inspection camera | √ (MV105/ MV108) | √ (MV105/ MV108) | √ (MV105/ MV108) | × |
