Xhorse VVDI Key Tool Max Pro Multi-Language Remote Programmer

VVDI Key Tool MAX PRO Programmer with Mini OBD Tool Functions Support Battery Voltage and Leakage Current Functions

Xhorse VVDI KEY TOOL MAX PRO is a professional smart all-in-one device with a multi-function communication interface, Bluetooth, and WIFI suitable for connecting and controlling Xhorse key-cutting machines.
It supports various OBD functions such as vehicle diagnostics, IMMO software, throttle software, TPMS, and maintenance light reset.

Key Tool MAX PRO Description

The all-new Key Tool Max Pro from Xhorse comes with all existing features but with so much more!
It combines the functions of Key Tool Max + Mini OBD Tool

Designed with locksmiths in mind, this device has all the essential features of Xhorse's premium flagship VVDI toolkit including transponder cloning and generation, RF testing, and remote regeneration.
It also unlocks the world of Xhorse Super Chip and Xhorse Universal Remote; Significantly increasing your vehicle coverage.

This new device has an OBD cable that allows programming directly through Key Tool Max Pro instead of requiring a separate programmer.
This also means that the device receives power via OBD, so you don't have to worry about charging lost in the job!

Xhorse Key Tool Max Pro Works with Universal TPMS Sensor

1. AG Material
Use automotive-grade materials and carry out strict quality control
2. 315/433MHz
Dual frequency facilitates inventory and budget management
3. 98% Coverage
Powerful 98% vehicle coverage with the tire pressure system
4. Reprogrammable
Universal for vehicles worldwide
5. Angle Adjustable
Meet different wheel hub installation needs
6. Long Battery Life
A reliable battery has a lifespan of 5 years

Xhorse TPMS Sensor Parameter:

RF transmit power: 5~8dBm
Battery: 350mAh/3V
Working Frequency: 433MHz/315MHz
TPMS Range: 0~800kPa
TPMS Accuracy: ±10kPa
TPMS Accuracy: ±5C
Accuracy of Acceleration Monitoring: ±15%
Size: 76.5 x 50.1 x 20.6mm

Xhorse Key Tool Max PRO Features

1. Combines the functions of Key Tool Max + Mini OBD Tool
The function of the remote transceiver is the same as the previous
Support generate transceiver etc. remotely...
2. Add new BMW CAS3 and Toyota models
BMW CAS3 Key Programming (Coming Soon)
Toyota Partial Key Programming (Coming Soon)
3. Multi-language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese
(The application language has no limits. You can switch for free now, the database language is English)
4. Free function for ID48 96bit.
How to get the free ID48 96bit function?
Please use VVDI Max to create a new 10pcs Xhorse remote key, after collecting points, after 2 hours, the server will open the ID48 96bit function for free.
5. Built-in CAN_FD module
6. Toyota H supports all keys lost with an 8A AKL adapter
7. Xhorse Condor / Dolphin key-cutting machine control

New - Programming for BMW CAS3 Toyota models To make it a more robust and competitive tool, KEY TOOL MAX PRO is expected to add programming features for BMW CAS3 and some Toyota models soon.
As always, Xhorse offers constant upgrades on this new machine; more can be expected!

Key Tool MAX PRO Xhorse Functions:

• Immobilizer Programming
• Service Reset
• Remote Generation
• Remote Cloning
• Transponder Generation
• Transmitter Copy
• Generate A Special Function
• Remote Unlock/renew
• Id Card Copy
• Generate/copy Garage Remote
• Frequency Detection
• Remote Detection Of Battery/Voltage

Newly Added OBD Module

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, allowing users to finish different jobs over a wireless connection.
Now, the MAX PRO comes with an OBD cable that can plug into the vehicle's OBDⅡ port, which means you don't need to buy a MINI OBD TOOL for IMMO programming and other functions.
Meanwhile, customarily wired connections can be very safe and reliable with low risk.


Embedded CAN_FD Module, Extended Function:

Regarding IMMO programming, MAX PRO is designed with a CAN_FD module, which makes it possible to complete IMMO programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc.
Of particular note is that Xhorse offers continuous upgrades for free, and the supported car models are constantly increasing for your convenience.


Read voltage and current leakage:

This function is only used for leak detection and voltage detection of the remote control, please do not use it to detect other products.
Leak Detection: It can detect the current when the remote control leaks and the current support range is 1 μ A ~ 35 mA (do not insert a battery into the remote control).
Voltage Detection: It can detect the voltage of the remote battery, and the support voltage range is 0V-36V

Comparison of Xhorse Key Tool Max PRO and Key Tool MAX

Item	Key Tool Max Pro	Key Tool Max
Appearance
CPU	Quad-core CPU	Quad-core CPU
RAM	1G+8G	1G+8G
OBD module	Yes, Built-in	External Mini OBD Tool
CANFD module	Yes	No
Battery Voltage Test	Yes	No
Immobilizer programming	Yes, Built-in	External Mini OBD Tool
Cadillac CT4/CT5 CAN FD	Yes	No
Buick GL8/ ENCLAVE CAN FD	Yes	No
Chevrolet/Cavalier/Trax CAN FD	Yes	No
Service Reset	Yes, Built-in	External Mini OBD Tool
Generate remote (remote, smart card, Toyota XM remote, garage remote)	Yes	Yes
Copy remote	Yes	Yes
Identify/copy chip	Yes	Yes
Generate chip	Yes	Yes
File make key (Immo data tool)	Yes	Yes
Other special functions	Yes	Yes

X Horse Key Tool MAX PRO Parameter

Battery: 3375mAh
Standby: >5 Days
Input: 1.5A
Light: >400nits
Screen Resolution: 1280*720P
Camera: 800W
WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

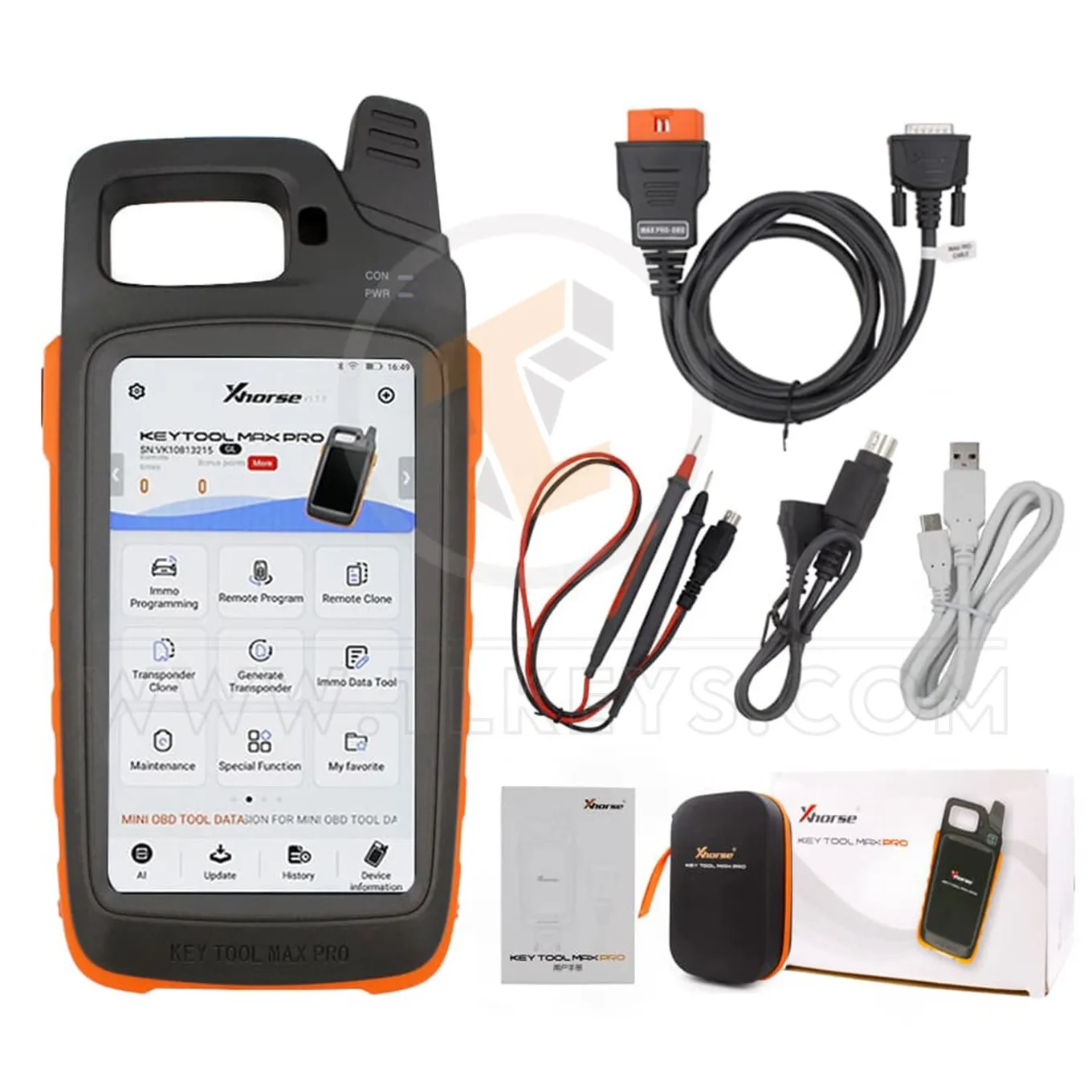

VVDI MAX PRO Tool Package List:

• 1pc x KEY TOOL MAX PRO device
• 1pc x OBD to DB15 cable with light
• 1pc x Remote programming cable
• 1pc x Leakage detection cable
• 1pc x USB cable
• 1pc x Xhorse key tool max pro manual
