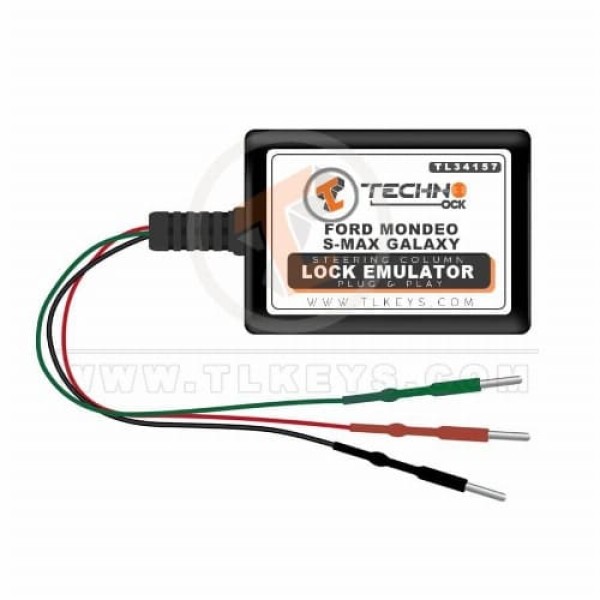

Ford Mondeo S-max Galaxy Steering Column Lock ELV ESL Emulator

For Ford ESCL GK-1318 ELV ESL Emulator CD4 Platform Blue Connector Mondeo MK5 (cd391), S-Max MK2, (cd539e), Galaxy MK4 (cd390e) etc


$49.00

Attributes

weight 0.03 KG

Models

Brand Model From To
Ford all all all

Ford ESCL GK-1318 ELV ESL Emulator CD4 platform Blue Connector Mondeo MK5 (cd391), S-Max MK2, (CD539E), Galaxy MK4 (CD390E) etc

For Ford ESCL Emulator CD4 platform Steering Lock Emulator

For Mondeo S-Max Galaxy Steering Lock Emulator Overview:
The device emulates the Ford ESCL unit, compatible with Ford CD4 platform cars (Mondeo, S-max, Galaxy, etc) starting from 2014 and up.
The original SCL number looks like AVON-3F880-Kx, connector has 4 pins, usually colored blue.
The Emulator is plug & play, no alignment is necessary.

For Mondeo S-Max Galaxy Steering Lock Emulator Installation on Car:
  • Stop the car.
  • Plug the connector into the Socket.
  • Note that the original SCL is powered only when there is a request for status or command for open or close.
  • Push the START button, and the GREEN LED must blink, if the RED LED blinked then there is an error you have to clear it with a diagnostic tool or you can reset the car by plugging out the battery and plugging it in again.
  • Repeated the last step until the GREEN LED blinks. the Emulator is Successfully Installed.

For Mondeo S-Max Galaxy Steering Lock Emulator Light Behavior:

Led on Emulator:
RED SCL is in a locked state
GREEN SCL is in an unlocked state

Pinout:
  • PIN 2: +PWR (switched)
  • PIN 3: GND (switched)
  • PIN 4: LIN

Note:
That LOCK action is performed with delay:
Ignition is switched OFF, doors closed and locked, car folds mirrors (if there is such functionality), then LOCK action is executed.
UNLOCK action is usually executed when a car is unlocked or IGN switched on.
All these actions must power on SCL, corresponding status LED must go on.
