TL35015

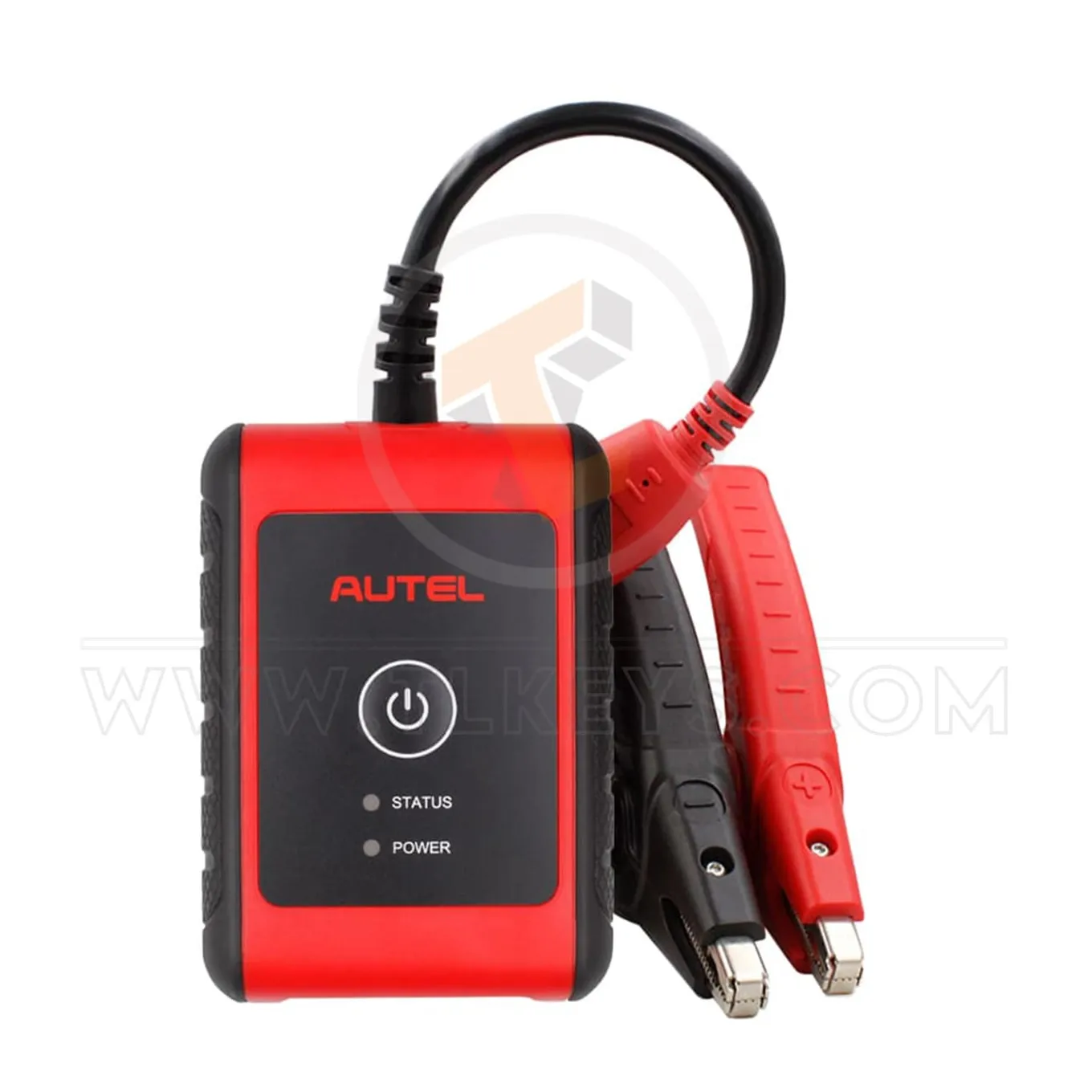

Autel MaxiBAS BT506 Battery and Electrical System Tester
Autel MaxiBAS BT506 Battery and Electrical System Tester
Autel MaxiBAS BT506 Battery and Electrical System Tester

Autel MaxiBAS BT506 Auto Battery and Electrical System Tester

159 $ 159 €


TL35015
Sorry, this product is currently out of stock.

Attributes :

DIAGNOSTIC TOOLS
ITEM CODE TL35015
MANUFACTURER Autel
TYPE Diagnostic Tool
PART NUMBER BT506
COLOR Red

Autel MaxiBAS BT506 Auto for Battery Health, Cold Cranking Ability, and Reserve Capacity Free APP for iOS & Android Bluetooth Connection (BT506)

What is Autel BT506 MaxiBAS ?

BT506 is a battery tools and electrical tester battery analyzer instrument that uses the adaptive conduction advanced battery analysis method, to produce a more accurate examination of the battery's cold cycling capacity and reserve capacity, which is vital to determine the true health of the battery.
BT506 allows technicians to view the health status of a vehicle's battery and electric tester system.
Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to take the test and view the test results.
 APP for iOS & Android Bluetooth Connection (BT506)

BT506 Autel MaxiBAS Specifications

  • Support passenger car batteries test inside and outside the car
  • 12 Volt batteries tested: 100-2000 CCA
  • 12V Circulating / Charging Systems Test
  • Test Flooded, AGM, AGM Spiral, EFB, and GEL batteries
  • Compliant with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA
  • Test 6- and 12-volt batteries: 100 - 2000 CCA
  • Adaptive creative delivery with 95% accuracy
  • View test records in list form, providing a brief review of tested vehicles and/or batteries
  • PDF Repair Report for easy viewing, sharing, and printing
  • Permanently valid free software updates

MaxiBAS BT506 Attributes

ItemDescription
ConnectivityUSB 2.0, Type C
Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage5V DC
Working Current< 150 mA at 12V DC
Internal BatteryN/A
CCA Range100 to 2000A
Voltage Range1.5 to 16V
Working Temperature-10°to 50° C (14° to 122° F)
Storage Temperature-20° to 60° C (-4° to 140° F)
Dimension (L x W x H)107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp   cable not included)
ASINB094V8HLWQ
Weight320 g (0.7 lb.)

 BT506 is a battery tool and electrical tester battery analyzer

What products does the Autel MaxiBAS BT506 work with?

Autel MaxiBAS BT506 can work with 95% Autel diagnostic tester tablet for the detailed vehicle battery, cranking, starter, and generator tests, such as Autel MK808BT, Autel MP808BT, Autel MS906BT, Autel MK906BT, Autel MS906TS, Autel MS906 Pro, Autel MS906 Pro-TS, Autel MK906 Pro-TS, Autel MK908, Autel MK908P, Autel MS908S Pro, Autel Elite, Autel Elite 2, Autel MS909, Autel MS919, Autel Ultra Lite, Autel Ultra
Autel MaxiBAS BT506 is a great addition to the latest scanners
Do you already have an Autel scanner on your hands?
Autel BT506 will be a great addition for detailed diagnostics of the health of the car battery.
It is compatible with the latest models such as the Autel Maxisys MS906 Pro, MS906 Pro-TS, and MS Elite 2 for complete checks of the battery, conversion, and charging systems.

 compatible with the latest models such as the Autel Maxisys MS906 Pro, MS906 Pro-TS, and MS Elite 2
AUTEL MAXIBAS BT506, strong adaptive behavior
Autel MaxiBAS BT506 applies adaptive connectivity to measure the health of the battery connection.
Compared to regular load tester tools, this technology allows multiple tests to be performed without battery drain and to test for low or almost empty batteries.
Likewise, the Autel BT506 car battery instrument uses adaptive coupling to test partner components in the battery, alternator, and starter to see if they can take and store a charge. Adaptive creative delivery with 95% accuracy
Here are the benefits of adaptive delivery technology:
  • The test accuracy rate of 94.31%;
  • The bad battery detection rate of 62.55%;
  • Reduce the charge and retest rate by 30.01%.
  • Low capacity batteries detection, bad batteries detection rate 100%
  • Diagnostics of low-capacity or completely discharged batteries
  • Reduce battery misdiagnosis and retest
  • With adaptive coupling technology, BT506 achieves faster diagnosis and higher efficiency.
  • More to explore
  • Upgradable to BT508
Do you want more jobs? Purchase an Autel VCI V200P to upgrade your BT506 to BT508 so you can reset the battery, change the battery, and fully scan for system faults for one vehicle brand.
AUTEL MAXIBAS BT506 User-Oriented Operation is Easier
New to the battery test? Don't worry at all! Autel BT506 provides detailed and step-by-step instructions, just follow the indicators on the screen, and you can finish the battery diagnosis easily.
1. In-car Testing: Battery Test: With clear instructions on the screen, you can perform a battery test.
Battery test results include a color-coded result summary, and a list of test data such as SOC, volts tester, metering capacity, and repair tips.

Start-up test: Follow the on-screen instructions, start the engine, and let it idle.
The test results of the cranking system are then displayed on the screen which includes the starting voltage, start-up and starts time.

Alternator Test: By testing the generator, technicians can check the load voltage/current, no load voltage/current, and ripple.
The live test result on the screen will tell you whether the charging is normal and whether there is a problem with output or ripple, which helps to avoid damaging the battery and shortening its life due to overcharging or incomplete charging.
2. Test outside the car:
The off-vehicle test is used to test the condition of batteries that are not connected to the vehicle.
This function is intended to check the health status of the battery only.

3 Automatically select the battery type
Install the BT506 on a battery inside the vehicle, the vehicle information will be filled in automatically and the battery information tab will appear at the bottom of the screen, select the correct battery parameters on the screen to process the diagnosis.
Polarity Protection
The metal clamps of BT506 are shielded with short circuit protection, no need to worry even when the positive and negative poles are reversed.
Share easy fix report
Battery Test app can save the history of repair reports from diagnostic sessions.
The repair report can also be generated in PDF for easy viewing, sharing, and printing of these reports.
Battery Types: Submerged, AGM, AGM SPIRAL, EFB, and GEL;
Standards: CCA, SAE, CA, EN, IEC, DIN, JIS, and MCA.
BT506 can be upgraded to BT508 by purchasing Autel VCI V200P
BAS Manager BAS Manager displays the status of the Bluetooth connection and enables users to check the current firmware version and update it when available.
Bluetooth Connection: Users can pair the mobile device with the BT506 tester via Bluetooth.
The laboratory serial number will be displayed on the screen.
Lifetime Free Software Updates Free lifetime updates of the BT506 Car Battery Tester ensure users always enjoy the latest functionality promptly.
The software includes the operating system, applications, digital battery tester, battery logging, and car manufacturers.
A notification will be displayed when updates are available.
Note: The BT506 can be upgraded to the BT508 by purchasing an Autel VCI V200P which is capable of resetting the battery, changing the battery, and full system fault scanning for one vehicle brand.
Vehicle and battery test report history: Battery Test app can save the history of repair reports from diagnostic sessions.
A PDF file can also be created to make it easier to view, share, and print these reports.
Data Logging: The data logging option allows you to start the automatic support platform directly to display all the logs on the diagnostic system.

BT506 vs. BT508 vs. BT608 vs. BT609 Comparison

ItemAutel BT506Autel BT508Autel BT608Autel BT609
SoftwareOperating SystemNONOAndroid 9.0Android 9.0
HardwareScreenNONO5.5-inch touchscreen / 720*12807.0-inch touchscreen / 1280*800
ProcessorCortex-M4Cortex-M4Cotex-A35 Quad-core, 1.5GhzCotex-A35 Quad-core, 1.5Ghz
Memory/RAMNONO32GB/2GB64GB/2GB
BatteryNONO3000mAh, 6H6000mAh, 6H
CameraNONO8mp8mp
FeaturesCCA Range100-2000 CCA100-2000 CCA100-3000 CCA100-3000 CCA
Battery TypeFlooded, AGM, AGM Spiral, EFB, GELFlooded, AGM, AGM Spiral, EFB, GELFlooded, AGM, AGM Spiral, EFB, GELFlooded, AGM, AGM Spiral, EFB, GEL
Battery RatingsCCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GBCCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GBCCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GBCCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Battery Voltage6V, 12V6V, 12V6V, 12V6V, 12V
Electrical System12V, 24V12V, 24V12V, 24V12V, 24V
Voltage Range1.5V-36V1.5V-36V1.5V-36V1.5V-36V
Temperature CompensationYESYESYESYES
Battery RegistrationNO53 vehicle makes53 vehicle makes53 vehicle makes
Electrical ResetNOYESYESYES
System DetectionNOAutoVINAutoVIN, VINScan, Plate ScanAutoVIN, VINScan, Plate Scan
Battery Location DiagramsYESYESYESYES
Battery Health ReportNOYESYESYES
Built-in PrinterNONOYESNO
Email ReportYESYESYESYES
Cloud-based ServiceYESYESYESYES
MultimeterNONOOptionalOptional
Amp ClampNONOOptionalOptional
DiagnosticsAll System Diagnostics With AutoSCANNOYES
(One vehicle brand ONLY)
YESYES
All Maintenance Service ResetsNONONOYES
Diagnostic Software UpdateNOChange for additional vehicle brands and annual updateNo annual update feeAnnual update fee

BT506 is a complete charging and starting system test

AUTEL MAXIBAS BT506 Questions & Answers

Question: Does this work for a 2009 Honda Accord?
Answer: This works with any 12V battery.
Question: Will this work for MS906TS with VCI v100 and register the battery?
Answer: It will work but will not register the battery, you will need a more advanced version like BT608.

AUTEL MAXIBAS BT 506 Customer Reviews

Works Great.
The great automotive battery tester works with my phone and my Autel scanner.
Does battery test in or out of the vehicle, complete charging and starting system test, and tests the auxiliary batteries.
It works very well
A few months back I did buy a battery from Autozone when I get the battery tester.
The first thing I did was check and see if was good and up it had a charge bud that was low and battery health was at 55%.
I did return the battery and got another in good condition so it saves me some money it did pay itself right away

BT 506 AUTEL MAXIBAS Package List

  • MaxiBAS BT506 unit with battery cable (about 2 feet long) with large (lower) clamps and temperature sensor
  • Quick Start Guide (QR code links to the app)
  • Free Updates
×
