NXP Smart Key Adapter P/N: MCKB059 For Kia EV9

NXP Smart Key Adapter P/N: MCKB059 For Kia EV9

The MCKB059 Universal NXP Key Programmer Adapter is a solderless work board designed for Kia EV9 smart remotes built around NXP NCF29xx chips. It gives automotive locksmiths a stable, repeatable connection to the remote PCB so key and remote adding can be completed quickly, without soldering or risking damage to the board.

Key Features

• Made for Kia EV9 remotes — the printed board outline matches the rounded EV9 smart key PCB shape.
• Fits all NCF29xx chip remotes — broad support across the NXP NCF29xx smart key chip series.
• Key & remote adding — supports adding new remotes to compatible Kia vehicles.
• Solder-free operation — two spring-loaded clamp arms press the PCB onto gold-plated contact pads, so nothing needs to be soldered.
• Dual labeled pin rows — VCC, MSDA, WAKE, GND and MSCL are printed in two rows for flexible cable routing and fast, error-free wiring.
• Includes WAKE probe wire — the pre-attached purple lead lets you reach the wake point when the remote board requires it.
• Updated 59-V1.1 revision — a refined board layout with cutouts that expose the target chip area on the EV9 PCB.

Board Layout

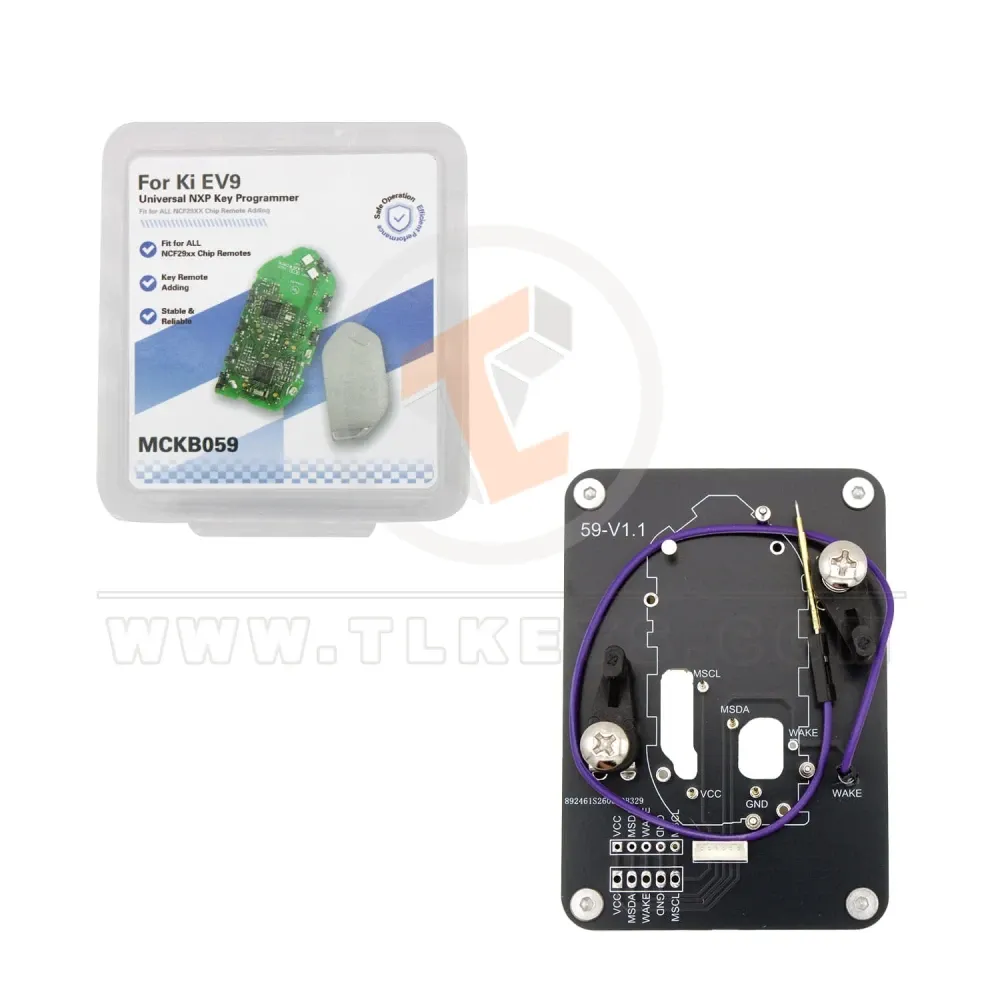

The adapter is marked 59-V1.1 and carries on-board test points labeled VCC, GND, MSCL, MSDA, and WAKE, plus a 5-pin header and two labeled pin rows along the lower edge for the connection cable. A printed PCB outline shows exactly where to seat the remote board, and the two adjustable clamp arms hold it securely at opposite corners.

Specifications

Part Number	MCKB059
Board Version	59-V1.1
Vehicle Brand	Kia
Model	EV9
Chip Support	NXP NCF29xx series
Function	Key/remote adding
Connection Type	Solderless clamp with 5-pin header
Labeled Pins	VCC, MSDA, WAKE, GND, MSCL
Test Points	VCC, GND, MSCL, MSDA, WAKE
Condition	New
Weight	0.1 KG

Package Includes

• 1 x MCKB059 NXP Smart Key Adapter Board (59-V1.1)
