NXP Smart Key Adapter P/N: MCKB057 For Kia

NXP Smart Key Adapter P/N: MCKB057 For Kia

The MCKB057 Universal NXP Key Programmer Adapter is a solderless work board designed for Kia smart remotes built around NXP NCF29xx chips. It gives automotive locksmiths a stable, repeatable connection to the remote PCB so key and remote adding can be completed quickly, without soldering or risking damage to the board.

Key Features

• Made for Kia smart remotes — the printed board outline matches the common Kia smart key PCB layout.
• Fits all NCF29xx chip remotes — broad support across the NXP NCF29xx smart key chip series.
• Key & remote adding — supports adding new remotes to compatible Kia vehicles.
• Solder-free operation — two spring-loaded clamp arms press the PCB onto gold-plated contact pads, so nothing needs to be soldered.
• Clearly labeled pinout — MSCL, GND, WAKE, MSDA and VCC are printed along the lower edge for fast, error-free wiring.
• Grouped test points — GND, SCL, SDA, WAKE and VCC are marked directly beside the PCB outline for quick reference during the job.
• Stable and reliable — a rigid base plate and screw-mounted clamps keep contact pressure steady throughout the session.

Board Layout

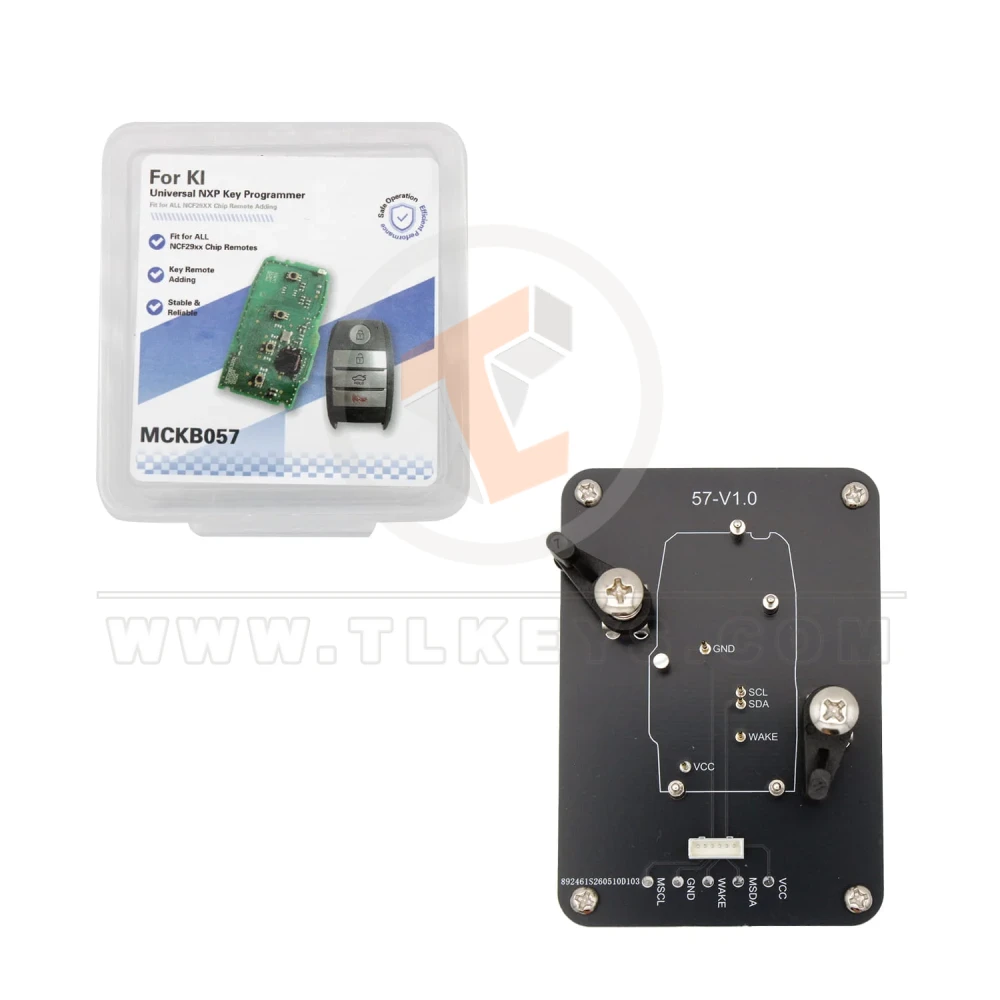

The adapter is marked 57-V1.0 and carries on-board test points labeled GND, SCL, SDA, WAKE, and VCC, plus a 5-pin header along the lower edge for the connection cable. A printed PCB outline shows exactly where to seat the remote board, and the two adjustable clamp arms hold it securely at opposite corners.

Specifications

Part Number	MCKB057
Board Version	57-V1.0
Vehicle Brand	Kia
Chip Support	NXP NCF29xx series
Function	Key/remote adding
Connection Type	Solderless clamp with 5-pin header
Labeled Pins	MSCL, GND, WAKE, MSDA, VCC
Test Points	GND, SCL, SDA, WAKE, VCC
Condition	New
Weight	0.1 KG

Package Includes

• 1 x MCKB057 NXP Smart Key Adapter Board (57-V1.0)
