NXP Smart Key Adapter P/N: MCKB055 For Hyundai Genesis 2024

NXP Smart Key Adapter P/N: MCKB055 For Hyundai Genesis 2024

The MCKB055 Universal NXP Key Programmer Adapter is a solderless work board designed for Hyundai Genesis 2024 smart remotes built around NXP NCF29xx chips. It gives automotive locksmiths a stable, repeatable connection to the remote PCB so key and remote adding can be completed quickly, without soldering or risking damage to the board.

Key Features

• Made for Genesis 2024 remotes — the printed board outline matches the multi-button Genesis smart key PCB used on 2024 models.
• Fits all NCF29xx chip remotes — broad support across the NXP NCF29xx smart key chip series.
• Key & remote adding — supports adding new remotes to compatible Genesis vehicles.
• Solder-free operation — two spring-loaded clamp arms press the PCB onto gold-plated contact pads, so nothing needs to be soldered.
• Clearly labeled pinout — MSCL, GND, WAKE, MSDA and VCC are printed along the lower edge for fast, error-free wiring.
• Includes WAKE probe wire — the pre-attached probe lead lets you reach the wake point when the remote board requires it.
• Stable and reliable — a rigid base plate and screw-mounted clamps keep contact pressure steady throughout the session.

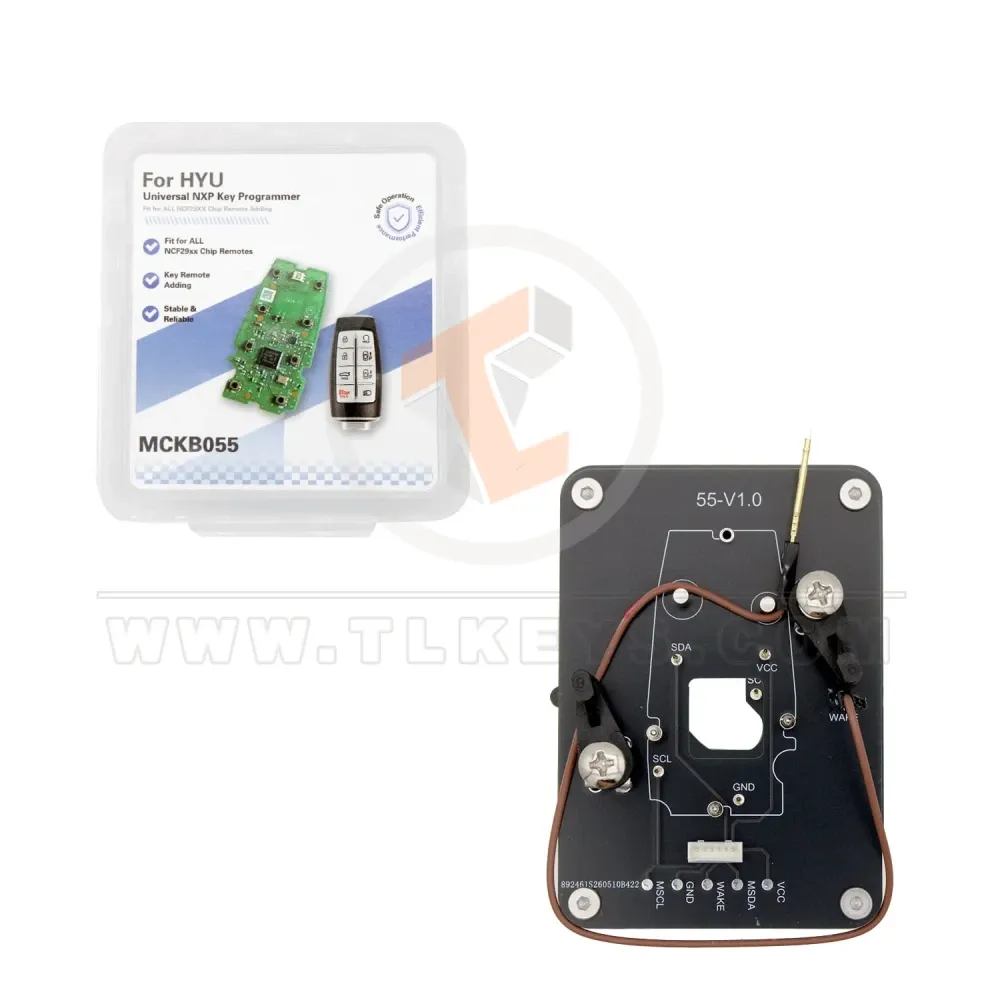

Board Layout

The adapter is marked 55-V1.0 and carries on-board test points labeled VCC, GND, SDA, SCL, and WAKE, plus a 5-pin header along the lower edge for the connection cable. A central cutout exposes the target chip area, and the two adjustable clamp arms secure the remote PCB firmly at opposite corners.

Specifications

Part Number	MCKB055
Board Version	55-V1.0
Vehicle Brand	Hyundai
Model	Genesis
Model Year	2024
Chip Support	NXP NCF29xx series
Function	Key/remote adding
Connection Type	Solderless clamp with 5-pin header
Labeled Pins	MSCL, GND, WAKE, MSDA, VCC
Test Points	VCC, GND, SDA, SCL, WAKE
Condition	New
Weight	0.1 KG

Package Includes

• 1 x MCKB055 NXP Smart Key Adapter Board (55-V1.0)
• WAKE probe wire (pre-attached)
• 1 x Protective storage case
