NXP Smart Key Adapter P/N: MCKB053 For Hyundai 2024 2025

NXP Smart Key Adapter P/N: MCKB053 For Hyundai 2024 2025

The MCKB053 Universal NXP Key Programmer Adapter is a solderless work board designed for the newer 2024–2025 Hyundai smart remotes built around NXP NCF29xx chips. It gives automotive locksmiths a stable, repeatable connection to the remote PCB so key and remote adding can be completed quickly, without soldering or damaging the board.

Key Features

• Covers 2024–2025 Hyundai remotes — the board outline matches the latest generation oval-style Hyundai smart key PCBs.
• Fits all NCF29xx chip remotes — broad support across NXP NCF29xx series smart key chips.
• Key & remote adding — supports adding new remotes to compatible Hyundai vehicles.
• Solder-free operation — two spring-loaded clamp arms press the PCB onto gold-plated contact pads, so nothing needs to be soldered.
• Clearly labeled pinout — MSCL, GND, WAKE, MSDA and VCC are printed along the lower edge for fast, error-free wiring.
• Includes probe wires — WAKE and additional probe leads are supplied for boards that require manual contact points.
• Stable and reliable — a rigid base plate and screw-mounted clamps hold contact pressure steady throughout the session.

Board Layout

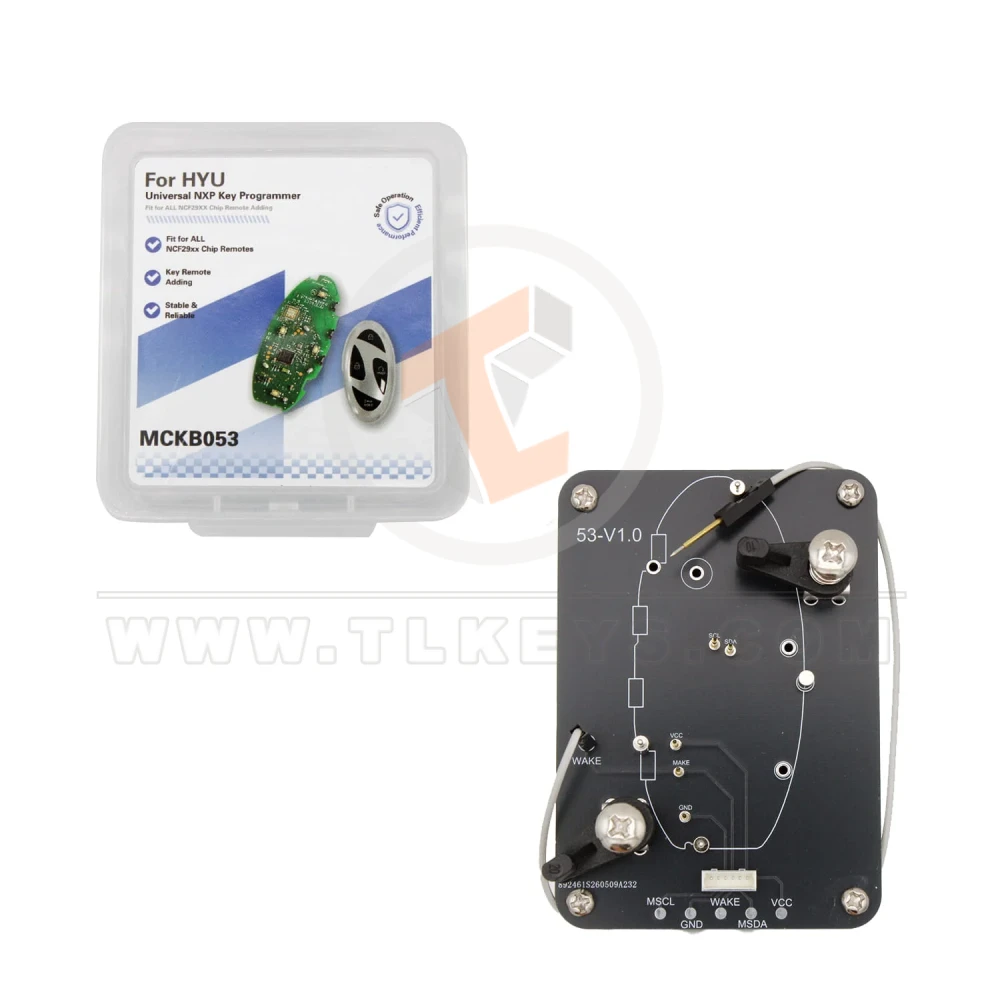

The adapter is marked 53-V1.0 and includes on-board test points labeled VCC, GND, SCL, SDA, MAKE and WAKE, plus a 5-pin header along the lower edge for the connection cable. A printed remote outline shows exactly where to seat the key PCB, and the two adjustable clamp arms secure it firmly at opposite corners.

Specifications

Part Number	MCKB053
Board Version	53-V1.0
Vehicle Brand	Hyundai
Model Years	2024 – 2025
Chip Support	NXP NCF29xx series
Function	Key/remote adding
Connection Type	Solderless clamp with 5-pin header
Labeled Pins	MSCL, GND, WAKE, MSDA, VCC
Test Points	VCC, GND, SCL, SDA, MAKE, WAKE
Condition	New
Weight	0.1 KG

Package Includes

• 1 x MCKB053 NXP Smart Key Adapter Board (53-V1.0)
• Probe / WAKE wires (pre-attached)
• 1 x Protective storage case
