NXP Smart Key Adapter P/N: MCKB051 For Hyundai SOP32

NXP Smart Key Adapter P/N: MCKB051 For Hyundai SOP32

The MCKB051 Universal NXP Key Programmer Adapter is a solderless work board designed for Hyundai smart remotes built around NXP NCF29xx (SOP32) chips. It provides locksmiths and automotive key technicians with a clean, repeatable connection to the remote's PCB, enabling key and remote adding to be performed quickly without damaging the board.

Key Features

• Fits all NCF29xx chip remotes — broad coverage across Hyundai smart key PCBs using the SOP32 package.
• Key & remote adding — supports adding new remotes to compatible Hyundai vehicles.
• Solder-free operation — spring-loaded clamps hold the PCB in place over gold-plated contact pads, so no soldering or PCB damage.
• Clearly labeled pinout — MSCL, GND, WAKE, MSDA and VCC are printed directly on the board for fast, error-free wiring.
• Stable and reliable — a reinforced base plate and screw-mounted clamps maintain consistent contact pressure throughout the session.
• Includes WAKE jumper wire — the supplied yellow probe wire lets you trigger the wake line when required.

Board Layout

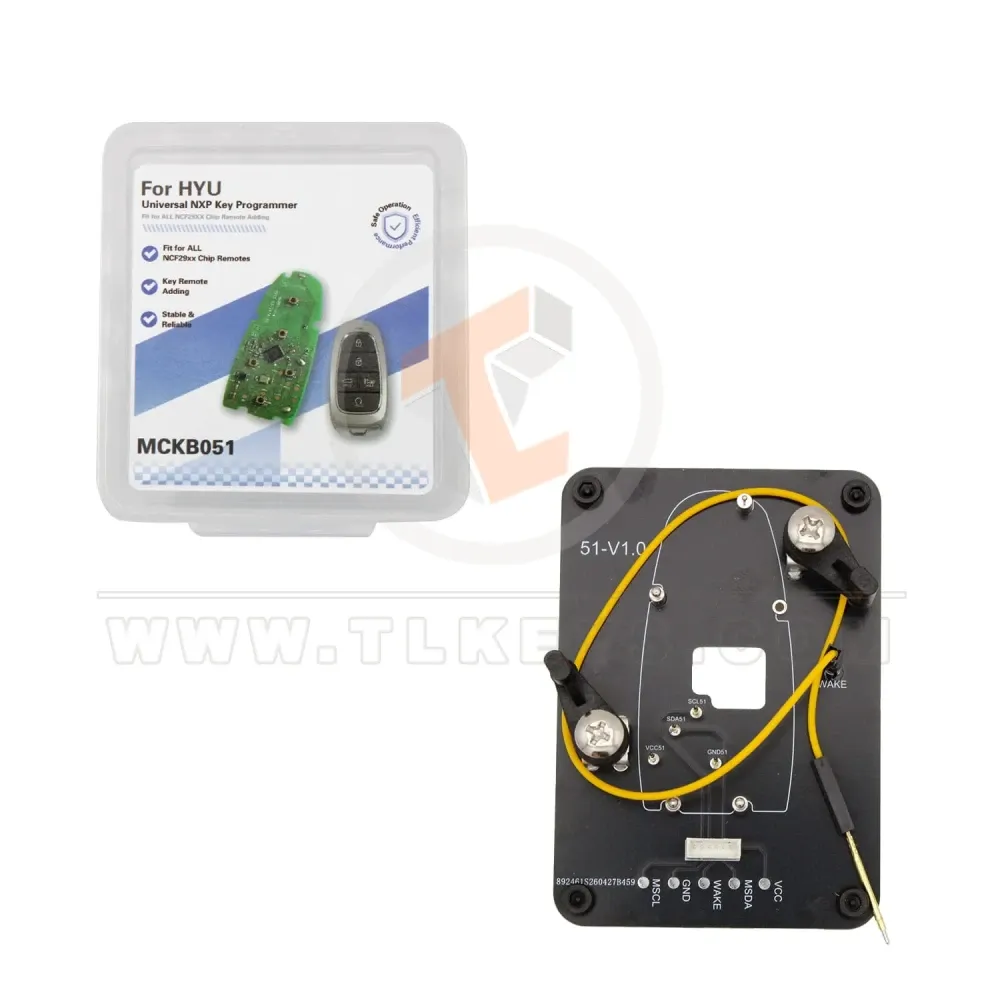

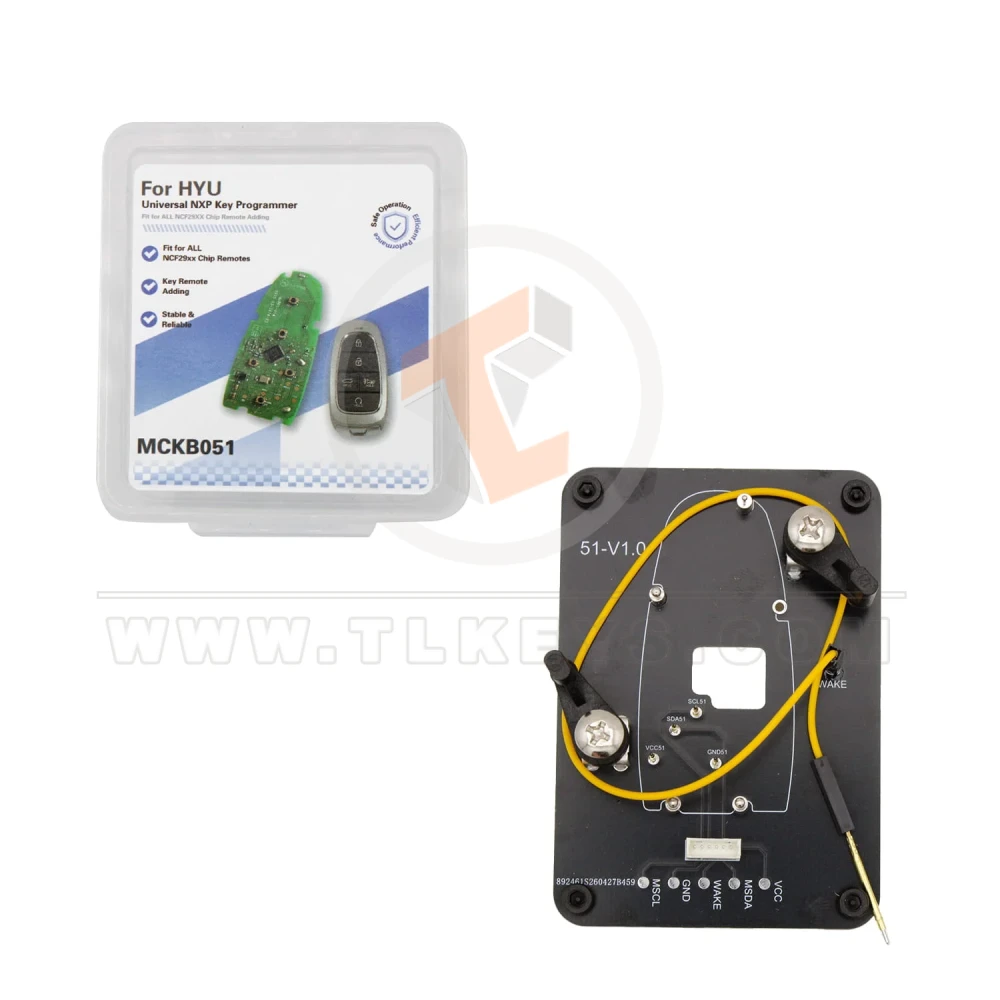

The adapter is marked 51-V1.0 and includes on-board test points labeled VCC51, GND51, SDA51 and SCL51, plus a 5-pin header on the lower edge for the connection cable. A central cutout exposes the target chip area, and two adjustable clamp arms secure remote PCBs of different shapes and sizes.

Specifications

Part Number	MCKB051
Board Version	51-V1.0
Vehicle Brand	Hyundai
Chip Support	NXP NCF29xx series
Chip Package	SOP32
Function	Key/remote adding
Connection Type	Solderless clamp with 5-pin header
Labeled Pins	MSCL, GND, WAKE, MSDA, VCC
Condition	New
Weight	0.1 KG

Package Includes

• 1 x MCKB051 NXP Smart Key Adapter Board (51-V1.0)
• 1 x WAKE probe wire
• 1 x Protective storage case
