NXP Smart Key Adapter P/N: MCKB047 For Honda Motorcycle

NXP Smart Key Adapter P/N: MCKB047 For Honda Motorcycle

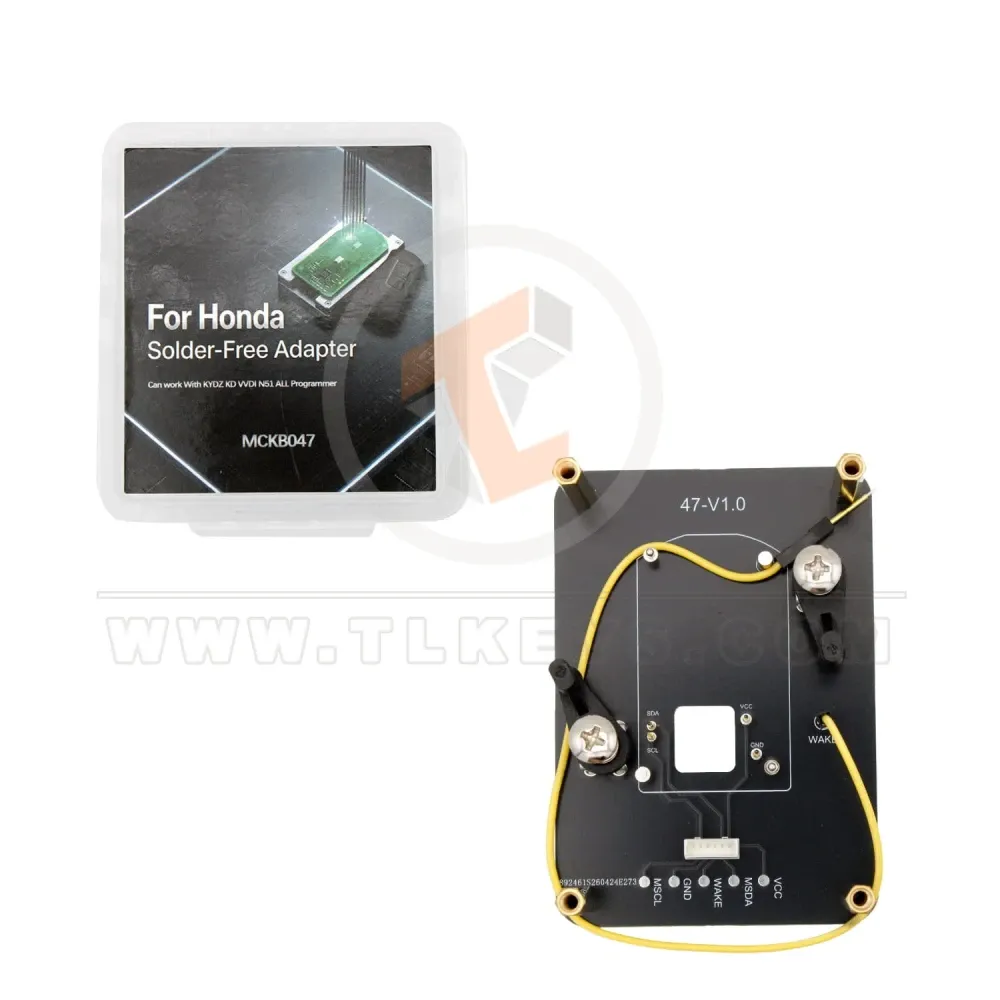

The MCKB047 is a solder-free adapter designed for working with Honda motorcycle smart key remotes. Instead of soldering wires to the remote board, the PCB is clamped directly onto the adapter's spring-loaded pins — saving time and avoiding damage to the remote.

Key Features

• Solder-free connection — no wires to attach to the remote PCB
• Works with KYDZ, KD, VVDI and N51 programmers
• Board outline shaped to fit Honda motorcycle smart remote PCBs
• Two adjustable clamp arms for a firm, stable hold
• Labeled pins for VCC, GND, SDA, SCL and WAKE
• WAKE lead included
• Board version 47-V1.0
• Supplied in a protective plastic storage case

Connection Points

The adapter board includes labeled pins and a header for direct wiring:

• MSCL / SCL – clock line
• MSDA / SDA – data line
• VCC – power supply
• GND – ground
• WAKE – wake-up signal

What's Included

• 1 x MCKB047 solder-free adapter board with clamp arms and WAKE lead

Important Notes

• This is an adapter board only — a compatible key programming device is required.
• The smart remote/key is not included.
• For professional locksmith use.
