NXP Smart Key Adapter MCKB035 for Mitsubishi Remotes

NXP Smart Key Adapter MCKB035 for Mitsubishi Remotes

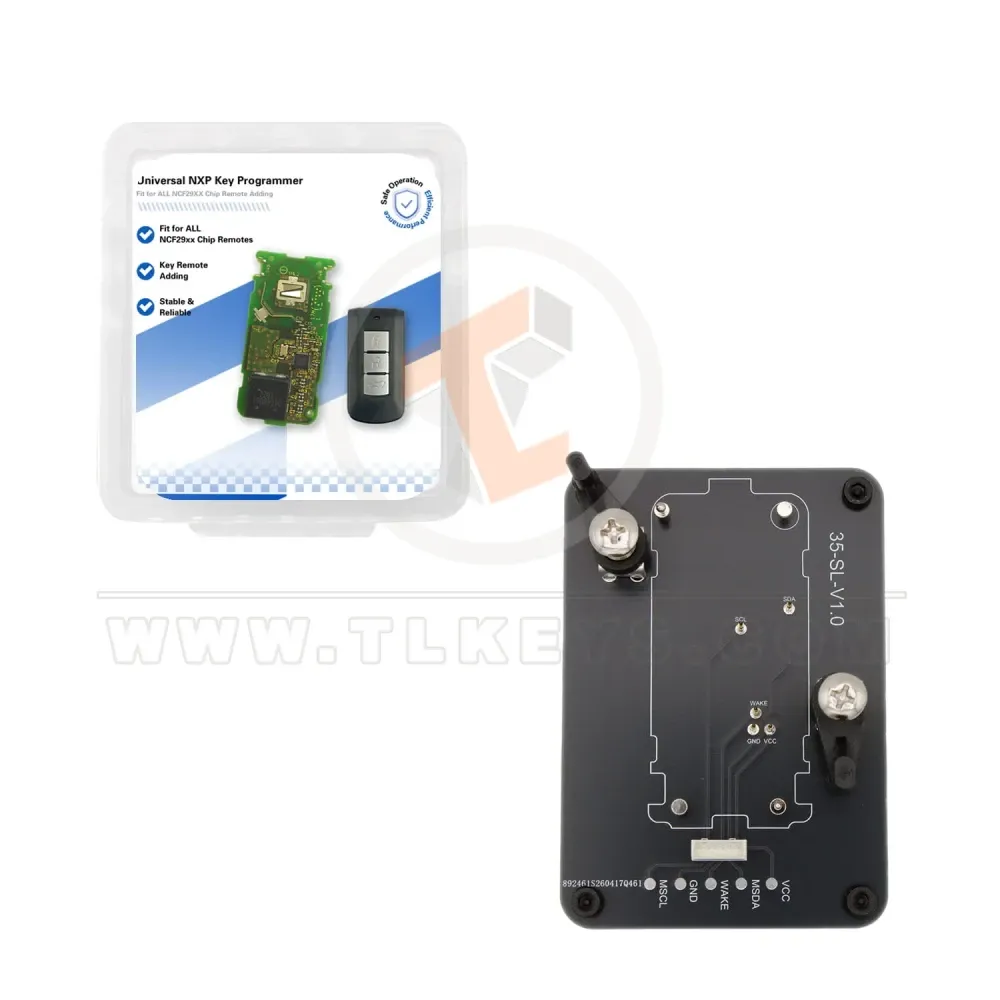

The NXP Smart Key Adapter P/N: MCKB035 is a dedicated programming adapter built for Mitsubishi smart keys using NXP NCF29xx chips. It creates a direct, stable link between the key PCB and your programmer, so you can read data and add remotes without soldering or removing components.

Key Features

• Fits all NCF29xx chip remotes — wide coverage across Mitsubishi smart key boards
• Key remote adding — designed for adding and programming smart remotes
• Solder-free clamp design — spring clamps hold the PCB firmly in place
• Labeled contact pads — SCL, SDA, WAKE, GND and VCC clearly marked
• Stable & reliable — consistent contact reduces read/write errors
• Safe operation — no damage to the original key PCB

Specifications

Part Number	MCKB035
Board Version	35-SL-V1.0
Brand Support	Mitsubishi
Chip Support	NXP NCF29xx series
Function	Key remote adding/programming
Interface	MSCL, GND, WAKE, MSDA, VCC
Connection	Spring clamp, solder-free
Color	Black
Condition	New
Weight	0.1 KG

How It Works

Open the Mitsubishi smart key and remove the PCB. Place the board into the adapter outline and secure it with the two clamps so the contact pins align with the marked pads. Connect the adapter cable to your programming device, then follow the software instructions to add the remote.

Package Includes

• 1 x NXP Smart Key Adapter MCKB035 (35-SL-V1.0)
