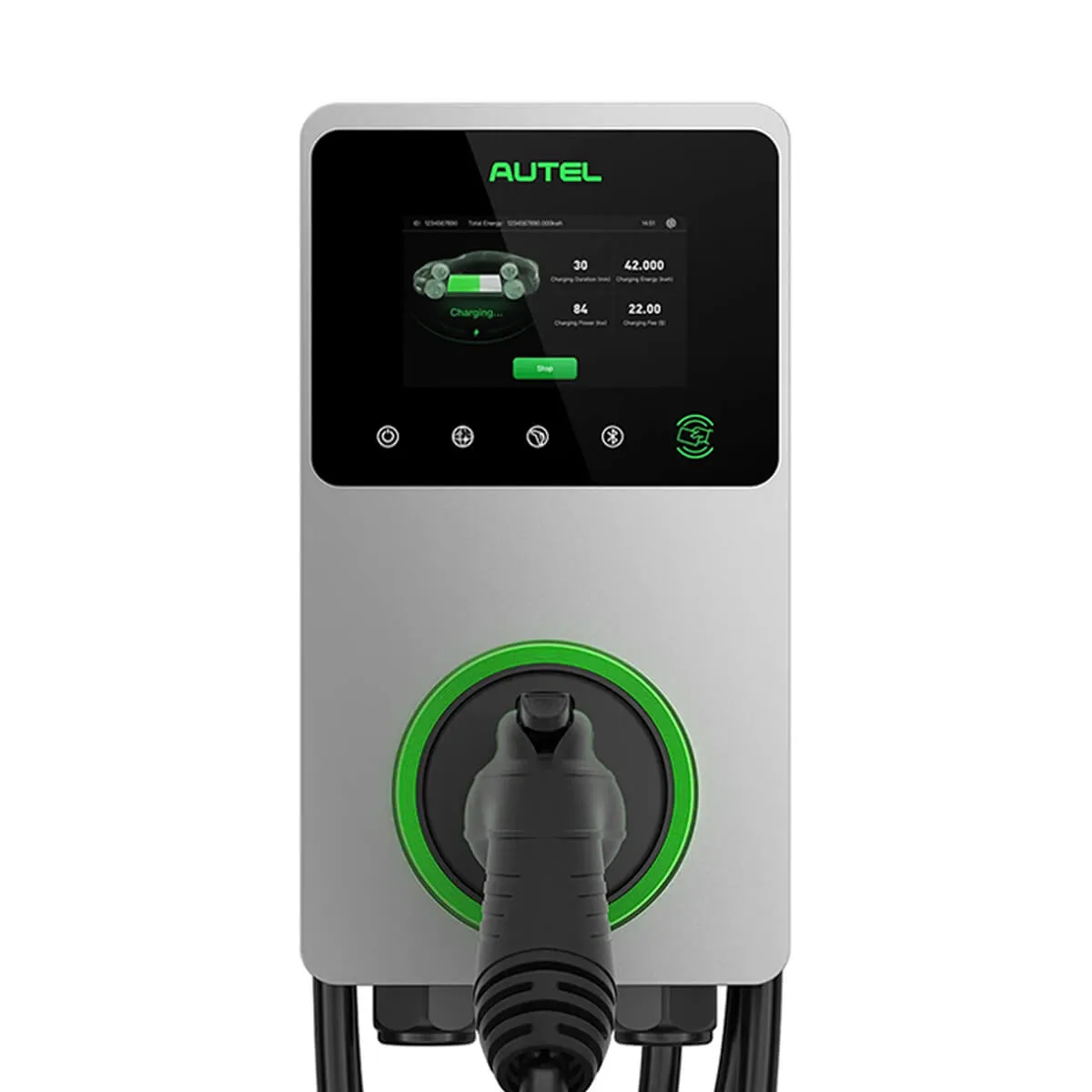

Autel MaxiCharger AC Ultra – Dual Port Fast EV Charger

Autel MaxiCharger AC Ultra – Dual Port Smart EV Charger for Commercial Use

The Autel MaxiCharger AC Ultra is a high-speed, dual-port EV charger engineered for commercial and fleet environments. Delivering up to 19.2 kW per port, it charges two vehicles simultaneously, adding up to 75 miles of range in just 60 minutes.

Key Benefits:

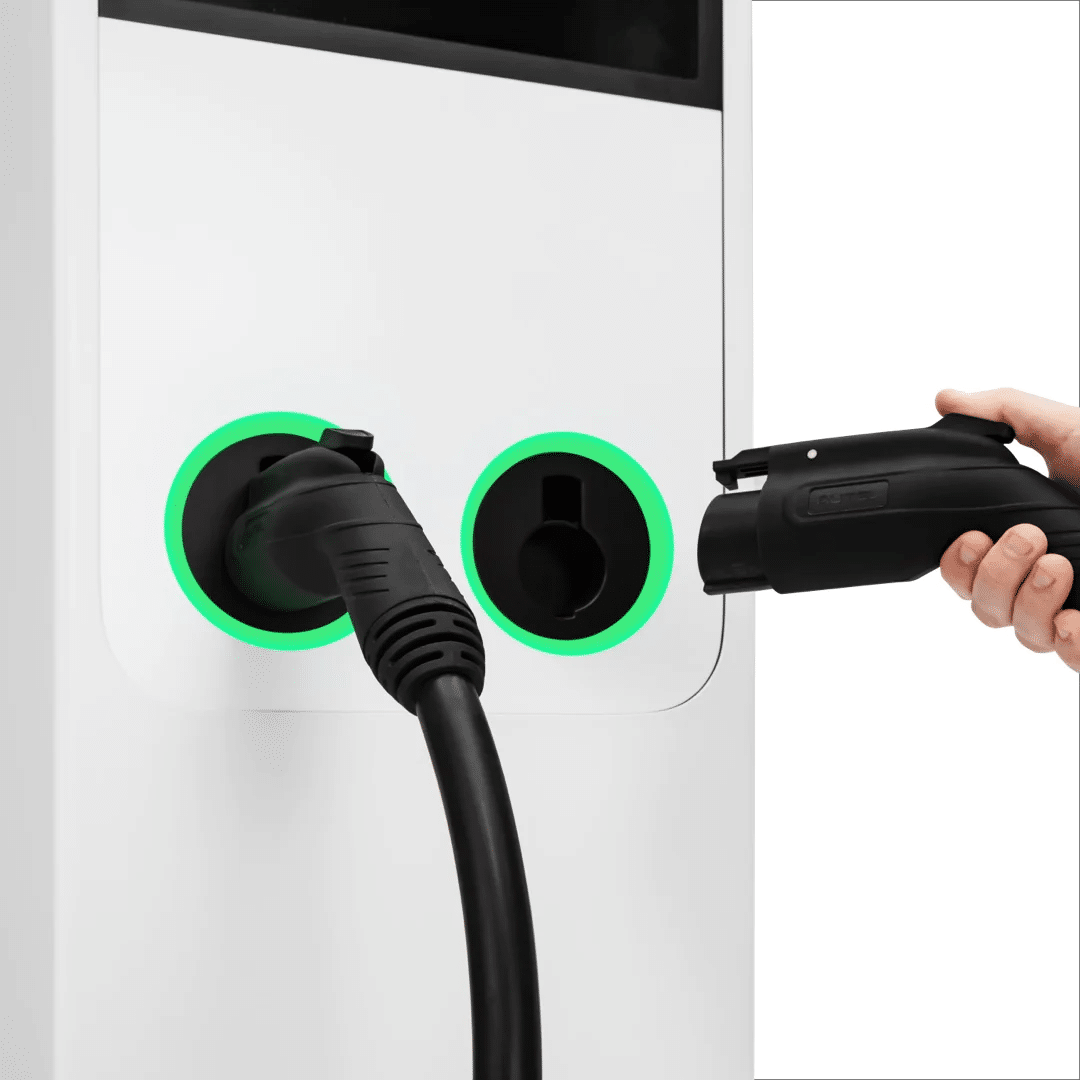

• Dual 19.2 kW Output
  Fast, simultaneous charging for two electric vehicles with industry-leading speed and efficiency.

• ISO 15118 Plug & Charge
  Simplifies the user experience with automatic, secure charging initiation.

• Commercial-Ready Design
  Rugged one-piece construction supports both wall and floor mounting, reducing installation time and cost.

• Smart Charging with OCPP Compliance
  Fully supports OCPP 1.6 and 2.0.1 for advanced charging management, future updates, and power optimization.

• Cloud-Based Charging Management
  Manage usage, monitor system health, and access real-time diagnostics through the Autel Charger Cloud.

• 8-Inch Advertising Screen
  Display custom media or promotions while users charge their vehicles.

• Flexible Authentication Options

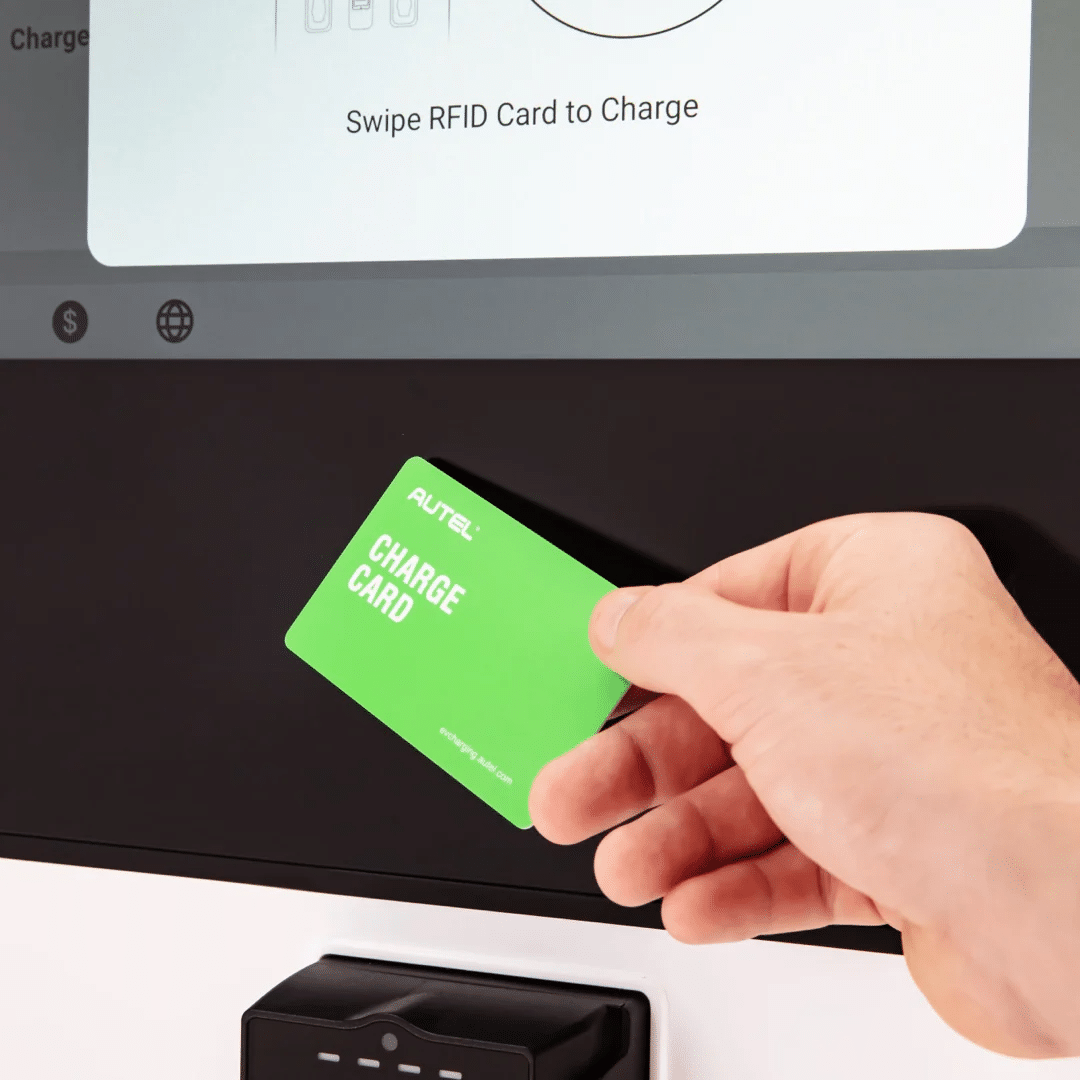

  Access charging via mobile app, RFID, credit card, or mobile payment.

• Durable & Weather-Resistant
  Designed to operate in all climates, with an IP-rated enclosure and compact footprint.

Technical Highlights:

• Power Output: 2 × 19.2 kW (adjustable 6A to 80A)

• Voltage Range: 208V ±15%, 240V ±15%, 60Hz

• Connectivity: Wi-Fi, Bluetooth, Ethernet, 4G, RS485

• Interface: 8" HD LCD touchscreen (1280×720) + LED indicators

• Dimensions: 625 × 320 × 170 mm

• Certifications: UL, CSA, NEC, FCC Class B, Energy Star, OpenADR 2.0b

• Warranty: 24 months (extendable)

• Standards: OCPP 1.6/2.0.1, ISO 15118

Value-Added Features:

• Cable management for organized use

• Power sharing between ports

• Wi-Fi hotspot sharing for up to 16 chargers

• Remote support and OTA firmware updates

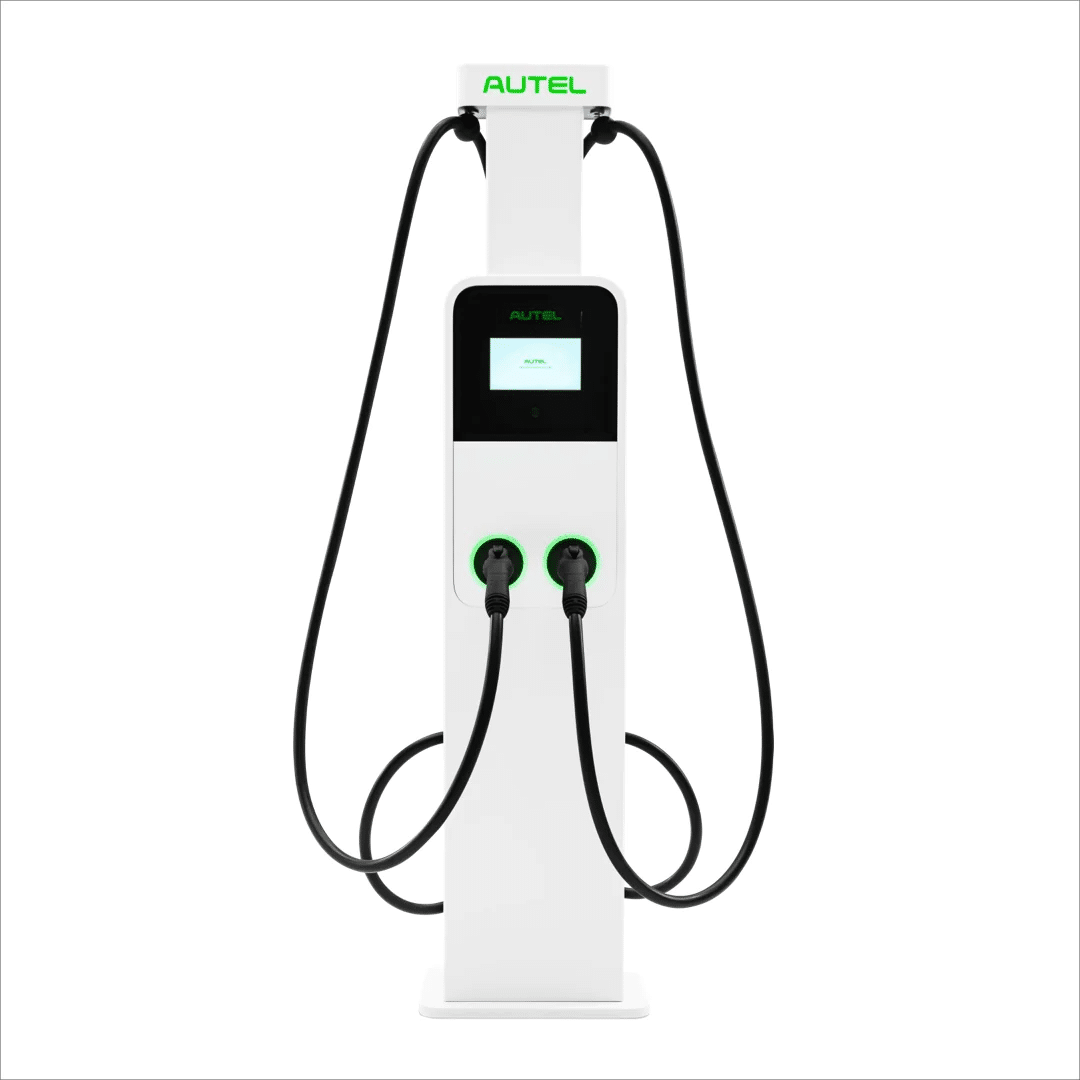

• Optional pedestal configuration for ease of deployment

The Autel MaxiCharger AC Ultra delivers a scalable, efficient, and intelligent EV charging solution ideal for commercial operators, property developers, and fleet owners.
