Autel MaxiBAS BT608 Battery and Electrical System Diagnostics Tool

Autel MaxiBAS BT608E – Professional Battery and Electrical System Analyzer

The Autel MaxiBAS BT608E is a comprehensive battery and electrical system diagnostic tool designed for automotive professionals. Powered by Android 9.0 and equipped with adaptive conductance technology, it delivers accurate diagnostics for 6V and 12V batteries, including Flooded, AGM, Spiral, EFB, and GEL types. With integrated battery registration, full-system scanning, and a built-in thermal printer, the BT608E streamlines workshop operations.

Key Features

Adaptive Conductance Technology
Offers up to 95% accuracy in evaluating battery cold cranking amps (CCA), reserve capacity, and state of charge. Reduces battery misdiagnosis, improves bad battery detection, and cuts unnecessary charge and retest cycles.

Battery and Electrical System Testing

• Supports 6V/12V battery testing from 100 to 3000 CCA

• Tests 12V and 24V cranking and charging systems

• Evaluates battery health, state of charge, and system performance even when batteries are low

Full OBDII System Diagnostics
Performs full-system diagnostics for over 80 vehicle brands (up to 2021), including reading and clearing DTCs, viewing live data, and freeze frame retrieval.

One-Touch Battery Registration and BMS Reset
Supports battery registration for 53+ vehicle makes. Automatically resets battery statistics and BMS, helping prevent start/stop system errors and power management faults.

Automatic Vehicle and Battery Identification
Uses AutoVIN and ScanVIN technology to quickly detect vehicle and battery details. Also supports barcode scanning and manual VIN entry.

Thermal Printer and Report Sharing
Includes a built-in thermal printer for instant reporting. Reports can also be saved or shared via Wi-Fi.

Electric Appliance Reset
Helps re-initialize systems such as lane-departure warnings, sunroof calibration, and pre-collision systems following battery replacement.

In-Vehicle and Out-of-Vehicle Testing
Supports battery testing whether the battery is installed in the vehicle or not. Simply enter battery specifications for accurate results.

Technical Specifications

• Operating System: Android 9.0

• Display: 5.5" touchscreen (1280x720)

• Connectivity: Wi-Fi, USB-C, Bluetooth 5.0

• Battery Test Range: 6V/12V, 100–3000 CCA

• Voltage Range: 1.5V to 36V

• Internal Battery: 7.7V, 3000 mAh

• Operating Temp: 0°C to 50°C

• Storage Temp: -10°C to 60°C

• Dimensions: 204 x 90 x 32 mm

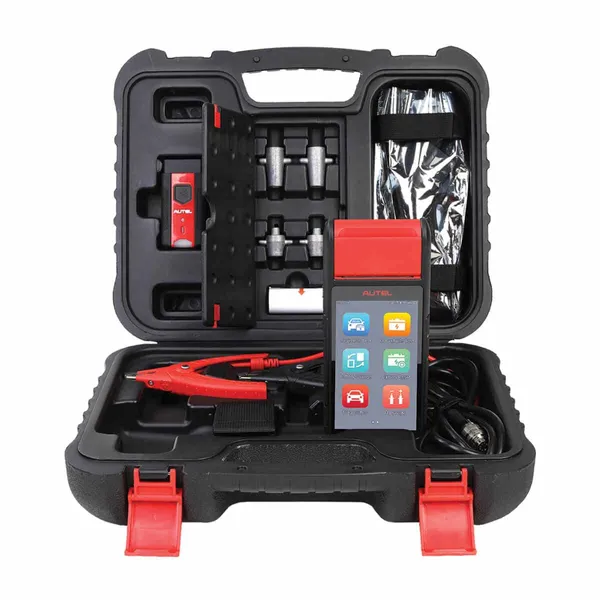

Package Contents

• BT608E Main Unit

• MaxiVCI MV200 Interface

• Battery Clamp Cable

• 2 Paper Rolls

• 2 Battery Side Post Terminals (Type T and Type S)

• Power Adapter

• USB Cable
