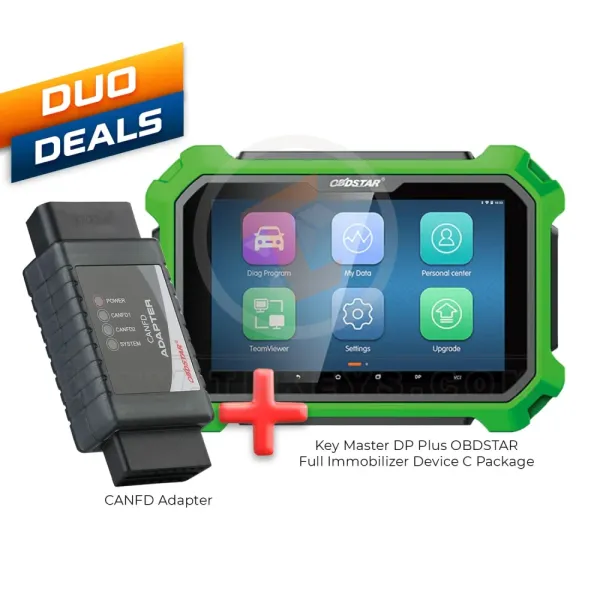

Key Master DP Plus C Package + CAN FD Adapter for OBDStar X300 & PRO4


$1525.00

Attributes

Compatible devices X300 DP Plus, X300 Pro4, Key Master DP
weight 5.1 KG

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise results. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more applications and services, such as Maintenance Database, remote assistant, One Key Upgrade, etc.

Hardware Advantages:
1. Built-in VCI box
2. 8-inch touchscreen
3. Charge directly via OBD interface
4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design: prop on the steering wheel or stand on the table
7. With 4 Toyota simulation keys (the fifth is coming soon)
8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Add the clip of reading SOP 8PIN EEPROM
10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming

Cluster Calibrate: wild vehicle coverage, pls check the Carlist

Diagnosis: realize all vehicle systems diagnosis

Special Functions:

  • TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
  • Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/Value Reset

ECU Clone

1. ECU Clone, means ECU duplication.

  • The device copies all the data from the original vehicle ECU and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

  • Without online matching in the 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:

A. Free of 4S online: break monopoly from 4S, benefiting the automobile maintenance industry

B. Simplified operation procedures: realize foolproof operation

C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate the secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add “Help Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.

2. Carlist and upgrade announcement, all details are available on the device

3. Customers can look up the features or uniquely support functions on the device

4.  Help notes: built-in help notes for each model or function

5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

OBDSTAR CAN FD Adapter

OBDSTAR CAN FD adapter is designed for diagnosing ECU systems of cars meeting with CAN FD protocols.
It can be used with X300 DP Plus, X300 PRO4, and X300 DP for key programming as well.
It's high performance and easy operation.

Advantages:
1.Portable Design
2.Easy Operation
3.High Performance

Supporting car models as below:

Brand Model Year
Cadillac Escalade  2021
CT4
CT5  2020
Chevrolet TRAX/TRACKER(4A)
CAVALIER/ONIX(4A)
Tahoe  2021
Silverado
Suburban
GMC Yukon
Sierra
Denali
Buick Envision
GL8(LSY)


Usage:
Use female connector connecting with OBDII-16 and male Connector connecting with DLC Diag Socket.

Package includes:
1pc x OBDSTAR CAN FD Adapter
