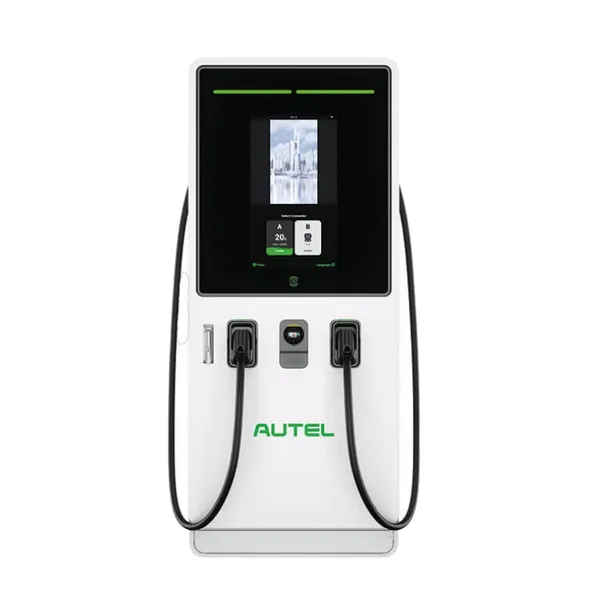

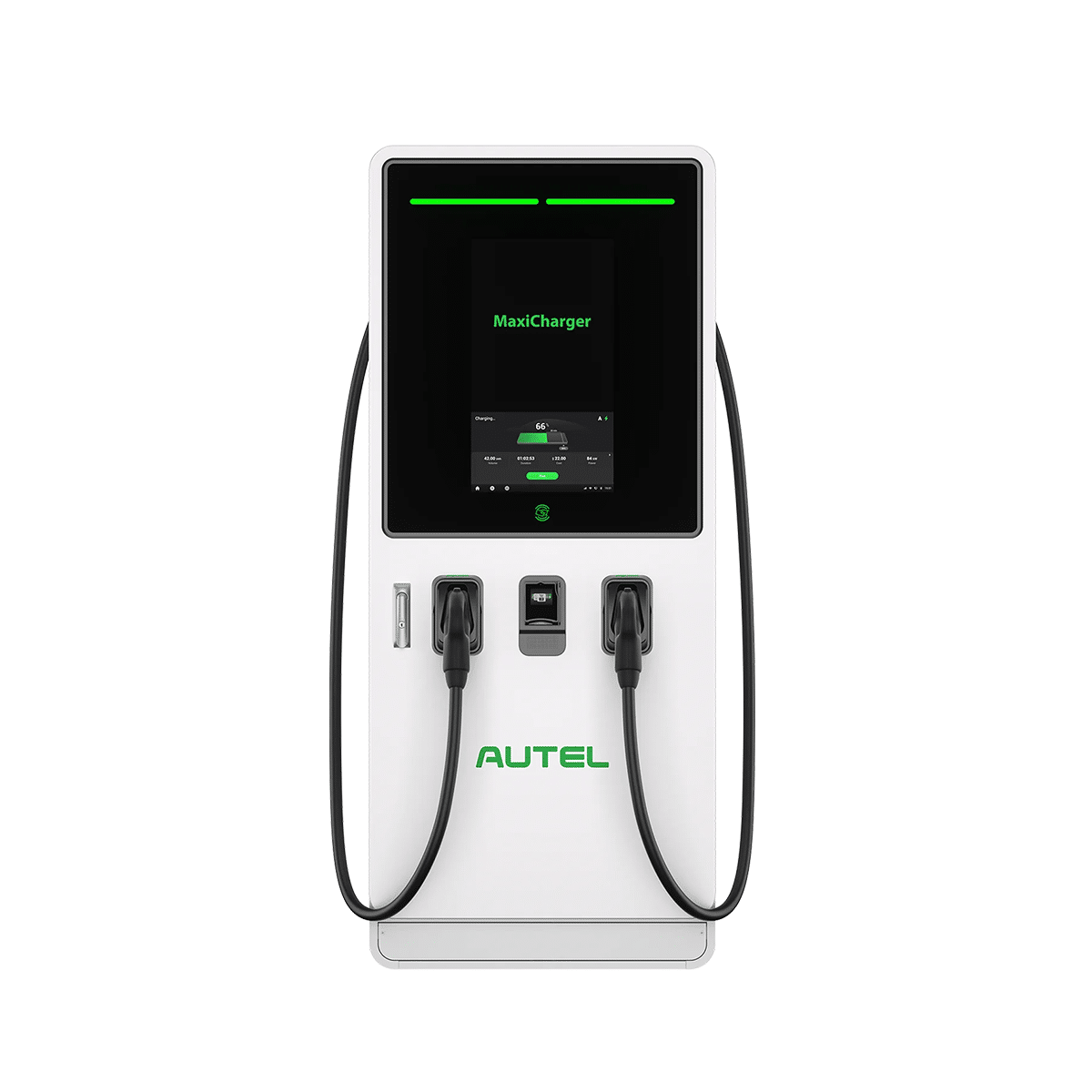

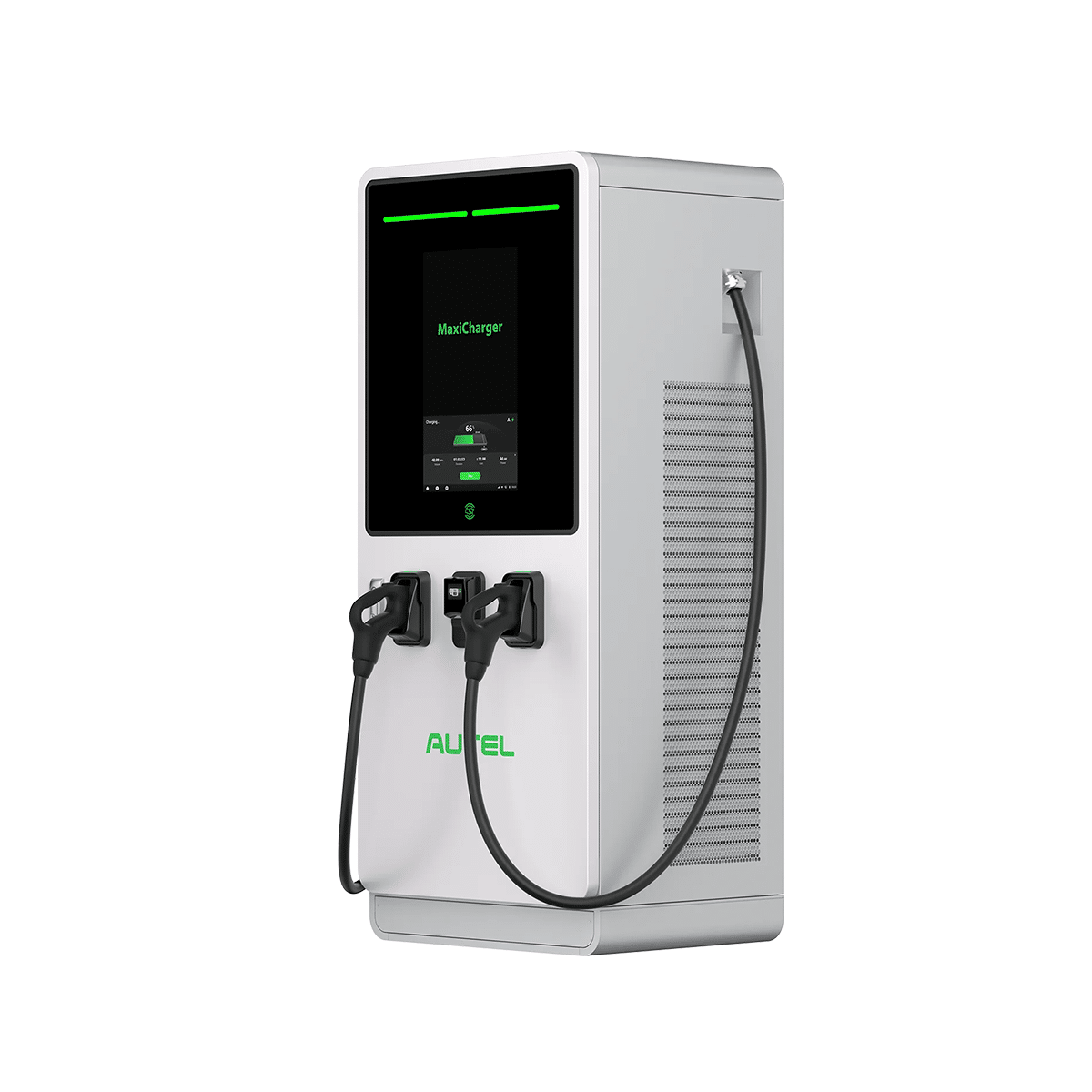

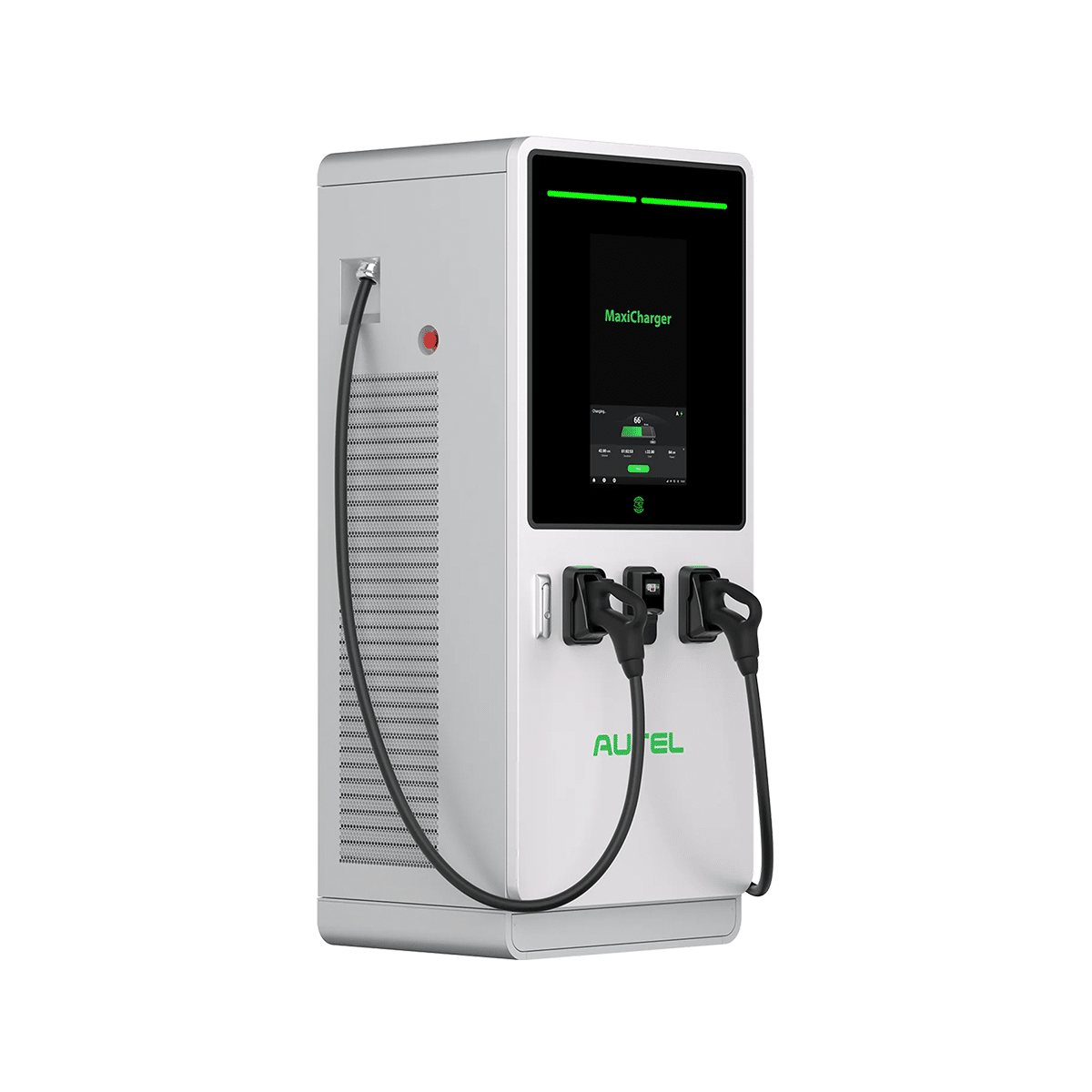

Autel EV MaxiCharger DC Fast 120 kW / 180 kW / 240 kW

Autel MaxiCharger DC Fast – 240kW Smart EV Charging for Commercial Deployment

The Autel MaxiCharger DC Fast is a high-powered, intelligent electric vehicle charging station built to meet the evolving demands of commercial EV infrastructure. With a scalable power output of up to 240 kW, it enables ultra-fast, efficient, and secure charging for nearly all EV models.

Key Features:

Advanced Safety with Triple Protection
A three-layer protection system integrates the Charger, Cloud BMS, and VCI to deliver real-time monitoring, predictive safety alerts, and secure operations.

Health Charging Mode
Actively prevents battery overcharging and thermal risks by monitoring EV battery status during each charging cycle.

AI-Driven Battery Diagnostics
Maximizes battery lifespan with AI algorithms that optimize charging behavior, increasing battery life by up to 20%.

Extensive EV Compatibility
Supports 99.5% of electric vehicles with one-time charging success rates above 99%, thanks to a wide voltage range (150–1000V).

Dynamic Power Allocation
Enables simultaneous charging of two EVs while intelligently distributing up to 240 kW based on demand.

High Efficiency Design
Utilizes silicon carbide materials and advanced power module architecture to achieve over 95% system efficiency.

Interactive User Interface
Includes a 27-inch LCD touchscreen (15.6-inch optional), app connectivity, and clear status indicators for ease of use.

Smart Management Software
Autel’s charging software allows real-time tracking, smart charging schedules, e-roaming, and full driver/station management.

Flexible Authentication & Connectivity
Supports app login, RFID cards, and credit cards (optional). Connectivity includes Wi-Fi, Bluetooth, 4G, Ethernet, and RS485.

Certified & Compliant
Meets UL, CSA, FCC, NEC, and ISO 15118 Plug & Charge standards. Comes with a 24-month warranty (extendable).

Technical Highlights:

• Output Power: 60 / 120 / 180 / 240 kW

• Output Voltage: 150–1000V

• Input Voltage: 3-phase 480V AC (+10%/-15%)

• IP Rating: NEMA 3R

• Operating Temp: -35°C to +55°C

• Screen: 27” LCD Touch (15.6” optional)

• Protocols: OCPP 1.6J (upgradeable to 2.0.1)

• Mounting: Floor Standing

Whether you're managing a commercial fleet, a public charging network, or high-volume retail infrastructure, the MaxiCharger DC Fast delivers speed, reliability, and smart control in one powerful solution.
