TL40751
ABPROG Programmer Kit

ZN030 - ABPROG Programmer Set with Software Activation

SKU: TL40751
Categories
Adapter
Manufacturers
Abrites
€300.00
Min 1
Specifications
Weight0.26 kg

Supported Modules and Devices

Supported Modules:

  • SPI, Microwire and I2C memories

Supported SPI Memories:

  • ST M35080VP / M35080V6
  • ST D080D0WQ
  • ST D160D0WQ
  • ST M95010
  • ST M95020
  • ST M95040
  • ST M95080
  • ST M95160
  • ST M95320
  • ST M95640
  • ST M95128
  • ST M95256
  • ST ST95P08

Supported Microwire Memories:

  • 93C46 8 bit / 16 bit
  • 93C56 8 bit / 16 bit
  • 93C66 8 bit / 16 bit
  • 93C76 8 bit / 16 bit
  • 93C86 8 bit / 16 bit

Supported I2C Memories:

  • 24C01
  • 24C02
  • 24C08
  • 24C16
  • 24C32
  • 24C64
  • 24C128
  • 24C256
  • 24C512
  • 24C1024

EEPROM and Flash:

  • EEPROM of the FEM/BDC without removing (ZN057 required)
  • MPC – reading and writing Bosch EDC16 units (ZN073 required)
  • MPC555/556 Flash
  • MPC555/556 CMF A/B Shadow Rows
  • MPC533/534/564 CMF Flash
  • MPC533/534/564 Shadow Row
  • MPC535/536/565/566 CMF Flash
  • MPC535/536/565/566 CMF A/B Shadow Rows
  • MPC5XX External Flash (58BW016XX, AMDXX, Intel28XX, Micron 58BW016XX, Numonyx 58BW016XX, Spansion 29CXX, ST 58BW016XX)
  • MPC5XX External EEPROM (ST 95640, ST 95320, ST 95160, ST 95080)

NEC MCU:

  • UPD70FXXXX PFlash
  • UPC70F35XX DFlash
  • DFlash 32KB V850ES

Renault:

  • BCM (X95)
  • HandsFree (X98)

PCF:

  • AUDI 8T0959754XX, 4G0959754XX, 4H0959754XX 315 / 868 / 433 MHz
  • BMW F HUF5XXX, 5WK496XX 868 / 315 / 433 MHz
  • BMW E 5WK49XXX Remote / Keyless 868 / 315 / 433 MHz
  • PORSCHE 7PP969753XX 433 / 434 / 315 MHz
  • VOLVO 5WK4926X 433 / 900 MHz
  • RENAULT AES, AES KEYLESS, DACIA AES, FLUENCE, MEGANE 3
  • OPEL ASTRA H, ZAFIRA B, ASTRA J/INSIGNIA
  • RANGE ROVER 5E0U40247 434MHz
  • MITSUBISHI G8D 644M
  • PSA 21676652, E33CI002, E33CI009, E33CI01B
  • CHRYSLER JEEP DODGE KOBOTO04A
  • BUICK 13500224(13584825),13500225(13584825) 315MHz
  • CHEVROLET 135XXXXX
  • GM KEYLESS 433MHz 5BTN
  • CADILLAC NBG009768T 315MHZ 5BTN KEYLESS
  • Mercedes-Benz NEC KEY

EWS:

  • Reading the following (ZN055 required)
  • 0D46J
  • 2D47J

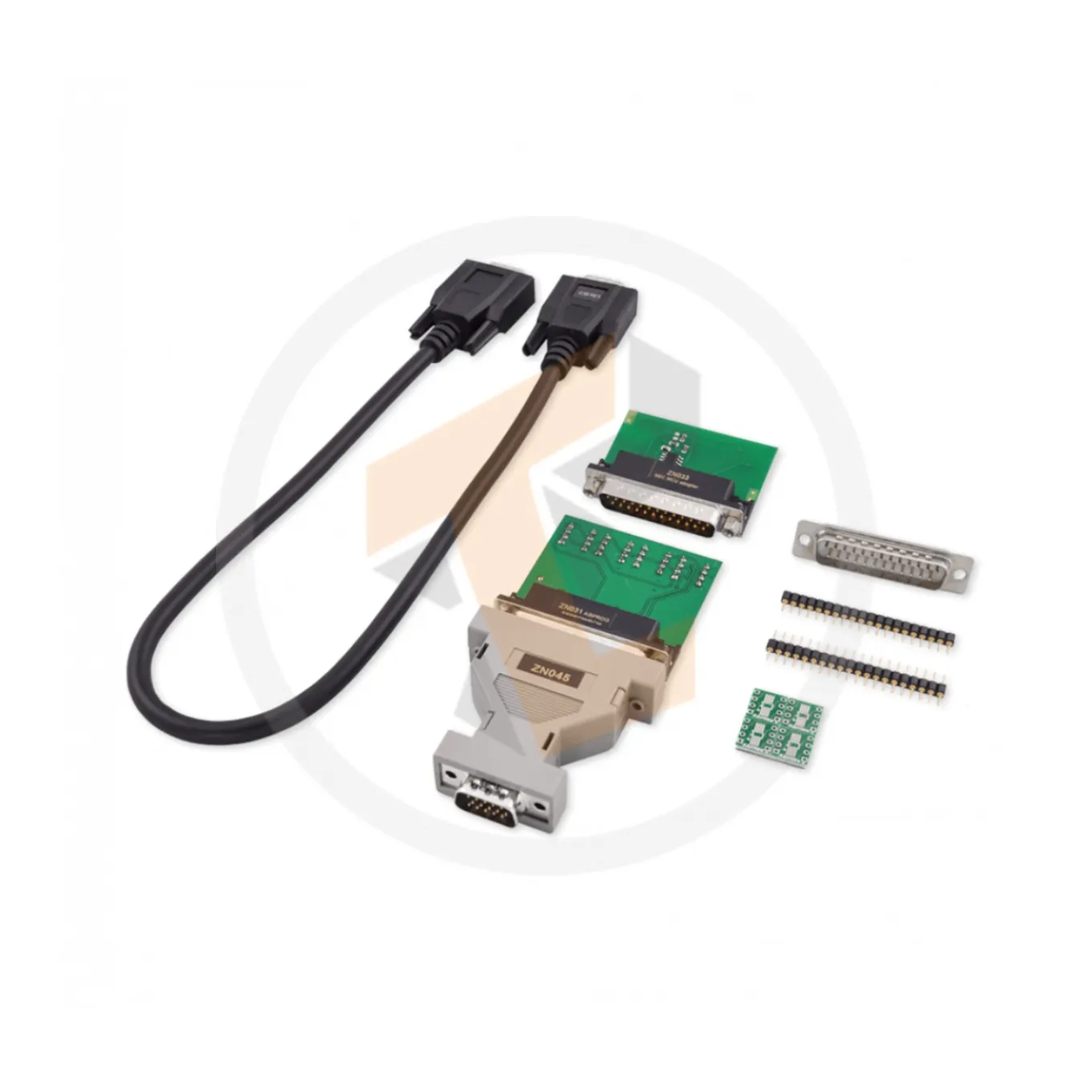

ZN030 Includes:

  • CB101 extension cable
  • ZN031 Abprog eeprom BCM - for reading, writing, and erasing of SPI, Microwire, and I2C memories
  • ZN033 NEC MCU adapter - for reading, writing, and erasing of NEC MCUs from Mercedes-Benz IR-keys
  • ZN035 Abprog eeprom socket - solution used when reading and writing 8-pin eeprom memories
  • ZN045 Abprog programmer
  • DB25 Male connector
  • The required software for all that to work appropriately
