Xhorse VVDI MB BGA Tool Device Bundle - Technolock
Xhorse VVDI MB BGA Tool Device Bundle - Technolock
Xhorse VVDI MB BGA Tool Device Bundle - Technolock

Xhorse VVDI MB BGA Tool MB Key Programmer + Mercedes Remote 315MHz and 433MHz

850 $ 782 €

Available in KSA
Sorry, this product is currently out of stock.
Now you can get these two products with a special price with shipping for free.
TYPE Key Programmer + Mercedes Remote

Product Description

  1. V5.1.1 VVDI MB BGA Tool Frequently online update
  2. Support all key lost W210,w204, w207, W166, W230, W246, W212, W212(old), some W216, W164 2009- and some others.
  3. Mainly used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/Gearbox renew, and many special functions

Top 6 Reasons to Buy VVDI MB Tool:
1.VVDI MB Tool LanguageEnglish, Polish, Spanish (Will add more in future)
2.Latest VVDI MB Tool Version: 5.1.1
3.Fastest Benz password calculation speed.
4.High quality, Professional Design.
5.Support all key lost: W210, W204, W207, W166, W230, W246, W212, W212(old), some W216, W164 2009- and some others. The future will add more.
6.Support FBS4 disable key function (Other function->FBS4 disable key)- Support W166/W205/W213/W218/W222/W246 type

Xhorse VVDI MB BGA TOOL Functions:
1.Read Write Key

Identification key, IR read-write BE key, read v51, v67 version's key password by NEC adapter, read activate blank BGA (OCF4) key, key current HASH (repair), renew, write into the used NEC key, write smart key, etc.

2.Password Calculation
OBD read and calculate all (FBS3) can protocol EIS password, support BGA keys, NEC key, v51, v57 version password calculation, support all key lost W164, W216, W166, W209, W211, W212, W246, W212(old), W204, W207, etc, online calculation key password

3.ESL Tools
OBD (Kline) read data, Renew ESL, replace ESL (no need to renew EIS), check ESL damage, repair W204 ESL

4.Read/ Write Gateway
Support OBD repair KM: W204, W207, W212, W251, W164, W211, W221, W216, W166.W172, W232, W205, etc
Support reading writing gateway EEPROM and FLASH: W211/W/164/W204/W207/W212/W221/W216 etc

5.EIS Tools
Read 8 write ES by OBD or ROBD auto-detect, access to W164 W209 W211 without gateway. Read the old Motorola EIS(k-line)’s password.
Renew EIS, Replace EIS, Enable key, Disable key. Personalize W204 ESL
Test ESL Status/Working key etc

6.Prepare Key File
Online generate v11, v41, v51 version's key file, support Motorola EIS
EPROM file, with high efficiency, 1009 successful generate

7.Program ECU/Gearbox/ISM
Support renew ECU, gearbox, and SM, write in VN, personalized, etc

Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model support IR/OBD:
W164, W164 2009+
A166, W197, W212, W218, A246
A169, W209, W211
W172, W204, A207
W204, W207, W212 only by dump
W209 only by dump
W215, W220

Keys version supported:
v03, v06, v08
v05, v07, v09
v59, v61

VVDI Benz BGA tool Review:

1. I test password from 212 new models super good tool need pay 2 tokens to need 10 min all ok
2. Do you have to see a video of this tool They say can do all key lost on w212.No tool can do it even Mehaco or NEC pro51.

w212 EIS on video, sure it can. Mehaco Mercedes instrument can do all keys lost on w212.. the option is available a few months.

I try to collect the list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 Motorola EIS(Kline), it cannot support will show error, need to remove EIS get EEPROM.
We have tested W215 ok, but not means all W215 can fact, only support parts of this type.

VVDI MB got an SLK 2013 all keys lost, can this be done via OBD.

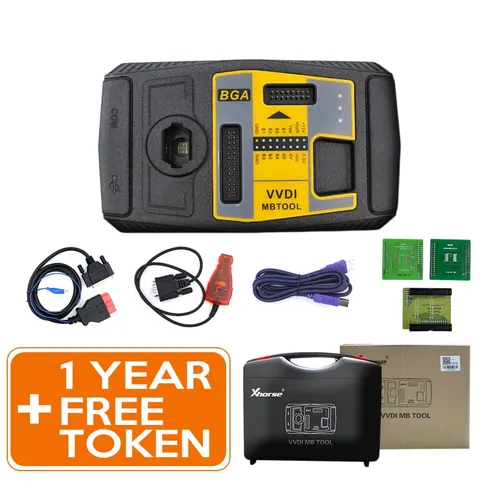

Package List:

1. VVDI-MB TOOL device
2. IR adaptor
3. USB cable
4. NEC adaptor 1
5. NEC adaptor 2
6. NEC adaptor base PCB
7. K-Line in OBD line
8. OBD line
9. Plastic Box
10. Carton Box

VVDI MB Optional Adapter:
VVDI-MB NEC Key Adaptor
EIS/EL Test Line Cables
VVDI-MB W204 ELV adaptor
VVDI MB BGA Tool Power Adapter
ELV Emulator for Benz 204 207 212

1.Q: I tested read data with obd2 210 kline working and 204 car read with OBD 2 ,but 211 not read with obd2 cable connect

16 12v
4+5 GND
14 CAN_L

pin 1: ESL 1
pin 2: GND
pin 3: +12V (30)
pin 5: CAN L (White)
pin 6: CAN H (Green)
pin 7: CAN L
pin 8: CAN H

A: Read EIS via OBD for W164, W169, W211, W209, require gateway connected

2.Q: I bought an EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of the W221 key in the future?
Describe step by step procedure

A: you have used/2nd-hand EIS with working key, you can do like this for W221 all keys lost all key lost EIS data-> save EIS data used EIS data enter a password, get erase password->renew used EIS.
3.load step1 EIS data to renewed EIS with password->write EIS data
4.load EIS data(with key password)->prepare key file
5.input new key to device IR reader->load key file->write
6.insert new key to EIS->EIS will learn the new key->key learn success

by the way, if your all key lost W221 is Motorola EIS, not need to change EIS, remove EIS get EEPROM by the programmer(VVDI PROG).
then load EEPROM to VVDI MB TOOL prepare key file.

3.Q: I have a w204 All key lost and I program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me on what to do?

A: about W204 all key lost(change new EIS), refer to following steps, maybe helpful: EIS data via OBD, then Save EIS data
2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3.Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)->Prepare Key File
6.Input new Key to device IR reader->Load Key file->write
7.Insert new Key to EIS->EIS will learn the new key->key learn success

4.Q: Is there a way to delete the used key with VVDI MB BGA?

A: Yes, VVDI MB TOOL supports.
