|TYPE||Smart Key Adapter|
Xhorse VVDI Toyota 8A Non-smart key adapter for a normal key with H chip All keys lost, without disassembling IMMO BOX

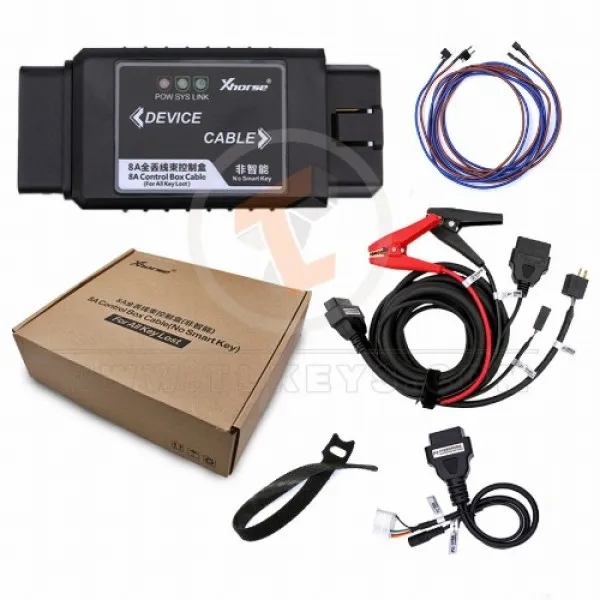

Xhorse VVDI Toyota 8A Non-smart All Keys Lost Adapter
Manual for Toyota 8A Adapter
- For the Toyota 8A H chip (non-smart) All keys lost from the year 2014 to 2019 via OBD, without disassembling Immobilizer box
- Supports VVDI2, Key Tool Max+ Mini OBD Tool
- Every day has 5 times limit. If more than 5 times attempt, it will display "Run out of attempts for the day"
- This is for standard 8A turnkeys, no smart key
Xhorse Toyota 8A control box cable-supported car models:
Levin, Corolla, Rav4, Prado, Land Cruiser, Camry, Highlander, Reiz, Sienna
You can register with your phone number, and get an online service.
Q: Even without vvdi2 I can use it with a mini OBD tool?
A: Yes. With Key Tool Max+ Mini OBD.
Q: Does it require token or authorization?
A: No, it does not require a token nor license.
Q: What years would this work on?
A: It works on all years.
Q: Toyota Aygo 2015 System H all keys lost. Does this computer program the chip?
A: Yes, it does.
Q: Hilux? Hiace?
A: No problem Toyota Hiace and Hilux (2015-2019 Immo box)
Q: Proximity or just keyed?
A: Not smart key. Just key.
Q: What versions of modules Immo H supports?
A: Immo box F3-F4-K6-S6
Q: I thought it was for OBD but nope
A: If it's for Obd2, yesterday I did it on the bench but it's by Obd2 via antenna without removing any screws from the board.
Q: Hiace and Hilux which years please?
Q: Is this used to program the Toyota H Immo box on the bench?
A: not on bench on the car via OBD no need to dismantle the dash anymore vvdi2 new software + key tool max u can read Immo data and make keys directly to Immo or other option is barracuda and tango on the bench.
with this set must be on the car because there is a connection to the fuse box and OBD and ign coil.
Q: What tool used to this connector to programing
A: VVDI2 or Key Tool Max+ Mini OBD Tool.
Q: Possible to program a smart key Land cruiser after 2016?
A: Yes, it will.
Q: Possible to use the 8a adapter with vvdi2 basic version? or full version only?
A: You can use the 8A adapter with any version of vvdi2.
