Lonsdor Super ADP 8A/4A Adapter for Toyota Lexus Proximity Key Programming with Lonsdor K518
Lonsdor ADP Super Highlights
Support Min. 90% Toyota/Lexus（up to 2021） smart key programming without AKL license.
Compatible with all K518 series (K518S/K518ISE/K518 Pro..)
All Keys Lost requires an LKE emulator as well.
Newly added key programming for smart box with chip 93C66
8A: DST-AES 88 A8 A9 AA
4A: HITAG-AES
Lonsdor Super ADP Functions
Backup immo data
Add key by OBD
All key lost
Delete key
Free password to program dealer key & Lonsdor FT specific key
How to Use Lonsdor ADP Super?
Connection: Locate the smart box.
Connect Lonsdor ADP 8A/4A Adapter to the K518 series programmer interface.
Disconnect the interface between the smart box and the car, then connect the smart box and ADP adapter via the professional wire harness.
Connect ADP adapter to the OBD port of the vehicle.
Operations:Make sure the K518 key programmer WiFi connection is good, then you can do the following operations based on the tips on the K518 series machine.
- Backup IMMO data
- Generate emulator key AKL (8A/4A)
- Add smart keys
- Delete smart keys
Note: No need to generate Lonsdor LKE smart key emulator when adding smart keys. However, you must generate Lonsdor LKE smart key emulator when all your keys are lost.Lonsdor ADP Adapter Toyota Car List:
| Toyota 8A | Camry/2013-2021 |
| Camry/2013-2021 |
| Land Cruiser/2014-2021 |
| Prado/2014-2021 |
| Crown/2015-2021 |
| Alphard/2015-2021 |
| Vellfire/2015-2021 |
| Previa/2015-2021 |
| C-HR/2018-2021 |
| lzon/2018-2021 |
| Wildlander/2018-2021 |
| Avalon HV/2019-2021 |
| Rav4/2014-2021 |
| Prius/2015-2021 |
| Avalon/2019-2021 |
| Corolla EX/2013-2019 |
| Harrier/2021 |
| Lexus 8A | UX series/2018-2021 |
| RX series/2013-2021 |
| NX series/2017-2021 |
| LS series/2013-2021 |
| Toyota 4A | Livin/2021 |
| Allion/2021 |
| Corolla/2019- |
| Corolla HV/2019-2021 |
| Levin/2019- |
| Levin HV/2019-2021 |
| IS series/2013-2021 |
| GS series/2013-2021 |
Package Includes:
- 1 pc x 27P cable

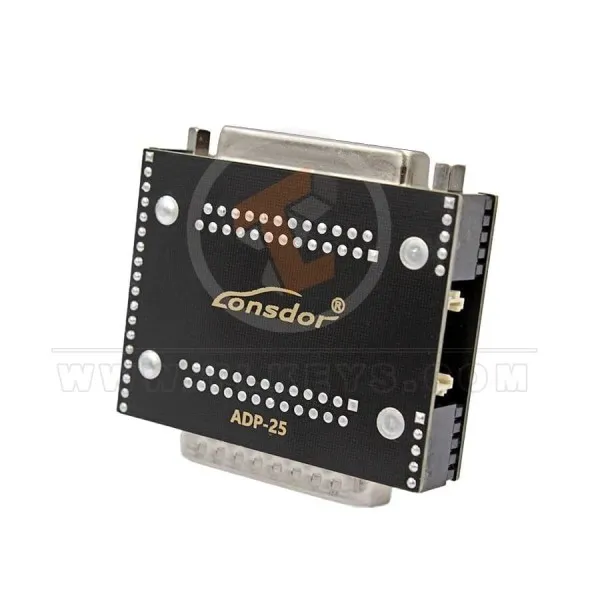

- 1 pc x ADP-25 adapter
- 1 pc x 24P cable
