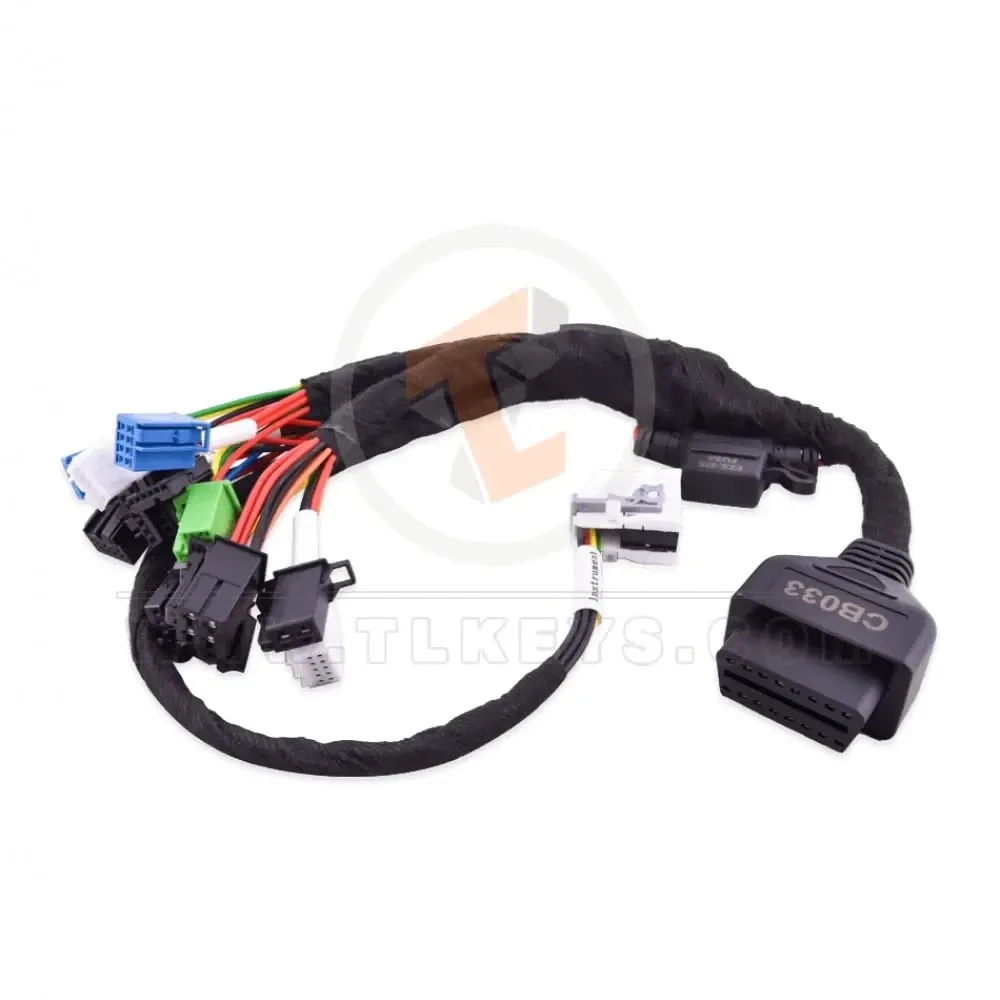

CB033 - EZS Bench Connection Cable for Mercedes

CB033 - EZS Bench Connection Cable for Mercedes

The CB033 cable is designed and developed for use with AVDI on the bench, to work with EZS modules from Mercedes-Benz vehicles.

Functionality:

• Bench work with EZS/EIS modules from Mercedes-Benz vehicles

The cable is equipped with connectors for:

• EZS/EIS modules
• Instrument Cluster (IC)
• GATEWAY (W211)
• OBD connector for CB100/CB106 cable for AVDI and ZN151 Distribution Box Set (or the old version of the DS box ZN051)
• DC connector for 12V power supply adapter



In case of EZS/ELV password extraction, the EZS/EIS fuse is used to reset the module via the ZN151 DS Box Set or ZN051 DS Box.

Supported Modules:

EZS (EIS) - electronic starter switch in the following models:

• W117/W156/W166
• W164
• W207
• W204
• W212
• W221

Note: AVDI with active AMS is required.
