Xhorse Audi AKL VVDI BCM2 Solder Free Adapter for VVDI Key Tool Plus and VVDI2 + VVDI Prog and All Key Lost Solution
The Xhorse BCM2 solderless adapter reads Audi's encrypted BCM computer data.
Soldering is no longer required when reading the AUDI BCM2 module, so it is user-friendly for people without soldering skills.
No soldering creates a safer environment and protects users' money by preventing damage to AUDI BCM2 modules.

Audi BCM2 Solderless Adapters Highlights :
- All keys are lost, and no soldering technique is required.
- No need to connect the VW server to calculate data (save your money).
- Get BCM2 IMMO data without the original key ID.
- Compatible with VVDI Key Tool Plus Pad and VVDI2 + VVDI Prog (VVDI Prog is used to read BCM2 data).
- Real free updates online like other Xhorse tools.
- Use regular 754J key in the market to program. No special requirements for the keys used.

Xhorse BCM2 Audi Solderless Adapter List:
2013-2019 A4L, A5, Q5BCM2 version: 0711, 0650, 0641, support add key and all key lost
2013-2019 A6L, A7, A8BCM2 version: 0825, 0824, 0827, support get BCM2 IMMO data when all key lost
Support getting BCM2 IMMO data without the original key ID
Support for BCM2 swap function in future updates.

Add Key | All Keys Lost |
| Read BCM2 data | Synchronize data | Read BCM2 data | Synchronize data |
A4L/A5/Q5 -2013 | OBD | No | OBD/some need to remove BCM2 | No |
A4L/A5/Q5 2013-2019 | Xhorse BCM2 Adapter | No | VVDI BCM2 adapter | No |
A6L/A7/A8 -2013 | OBD | Obtain from working key | OBD/some need to remove BCM2 | Obtain from the third party |
A6L/A7/A 2013-2019 | OBD | Obtain from working key | VVDI BCM2 adapter | Obtain from the third party |
Xhorse AUDI BCM2 adapter wiring diagram:
Connect the Device with VVDI2 + VVDI Prog (VVDI Prog is Used to Read BCM2 Data)
Connect the Device with VVDI Key Tool Plus Pad
Xhorse Audi BCM2 Solder-Free XDNPAB Adapter Frequently Asked Questions:
Question: What is the connection between the key tool plus and the BCM2? my car is a 2013 Audi A6.
Answer: Prog DB15 cable connected to the key tool plus DB15 adapter and power adapter is 12V 3-5A.
Question: Can BCM2 work with VVDI2 instead of Key Tool Plus Pad?
Answer: VVDI2 will also upgrade the software to support this function, while it needs to work with VVDI Prog to read BCM2 data.
Question: Can I use OBD for A4L from 2013 to 2018?
Answer: No. A4L 2013-2018 need to read BCM2 data via Audi free solder adapter, while A4L before 2013 can get BCM2 data by OBD and don't need a data set.
Question: Can I read BCM2 data directly with solderless adapters?
Answer: The Audi kit-free solderless retrofit kit consists of 6 parts.

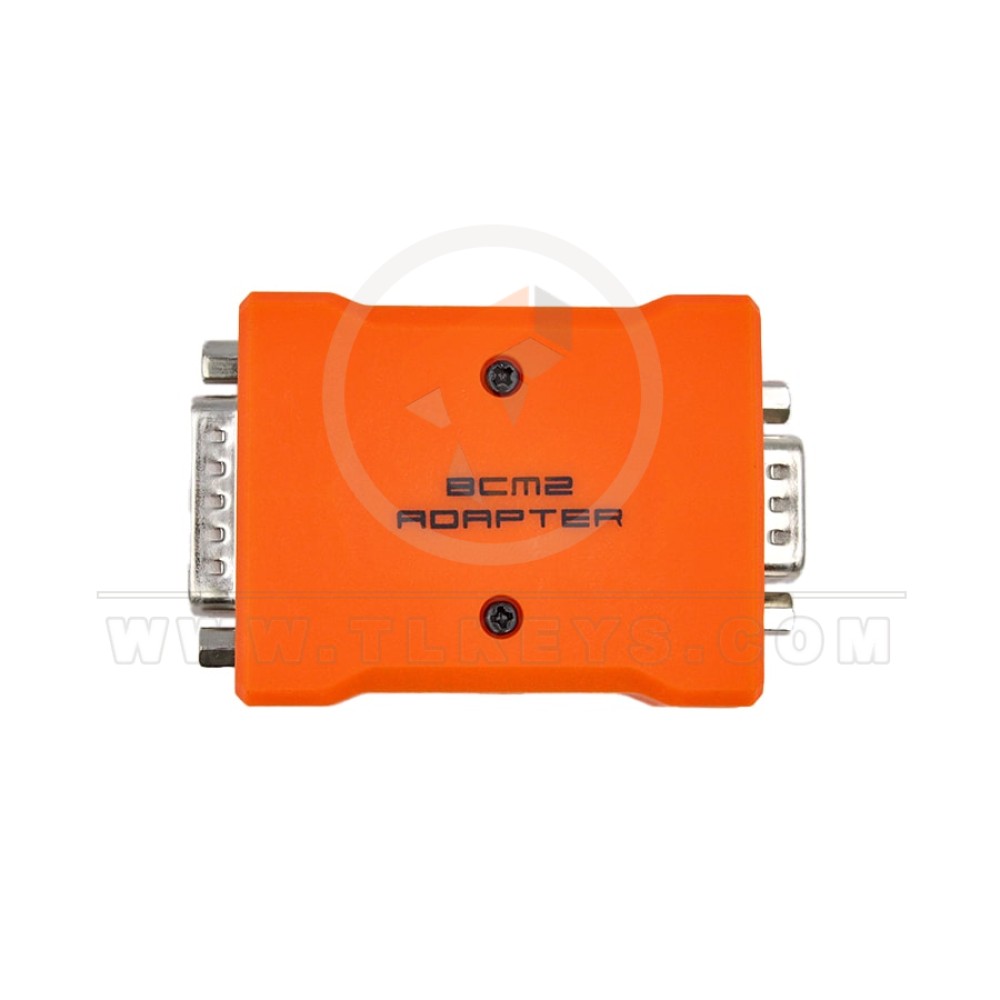

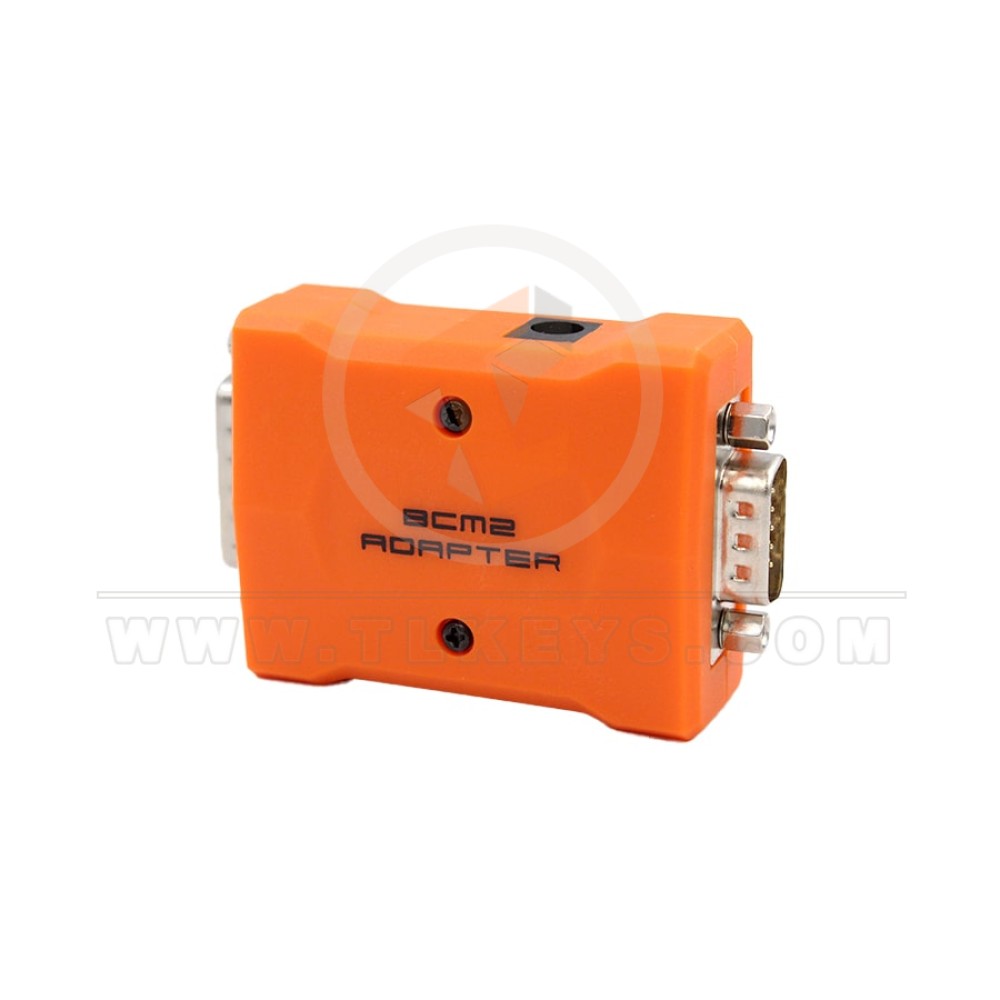

Its main component is the orange BCM2 adapter.
As long as this adapter is available, BCM2 data can be read by soldering wires, but the adapter is currently not sold separately.
In addition, to avoid damaging the BCM2 computer by soldering, we strongly recommend that novices choose a solderless adapter.
Question: Is BCM2 easy to disassemble?
Answer: It is more convenient, as long as people with a little hands-on ability can do it, it is usually hidden behind the protective pad of the car trunk, which is a buckle plastic box.
You can take out the BCM2 circuit board by gently prying the buckle.
Question: Will there be annual fees in the future? Will points be deducted?
Answer: The adapter only charges once, and it will be free for future use, and no points will be deducted.
Question: Are there any particular restrictions on the keys used?
Answer: You can use the 754J key currently on the market.
Question: Does it support A6L for all keys lost?
Answer: A6L can't support it yet.
Currently, it only supports A4L, A5, and Q5 all keys are lost.
A6L supports reading BCM2 data in the all-lost state.
It would be best if you found a third party to synchronize the data.

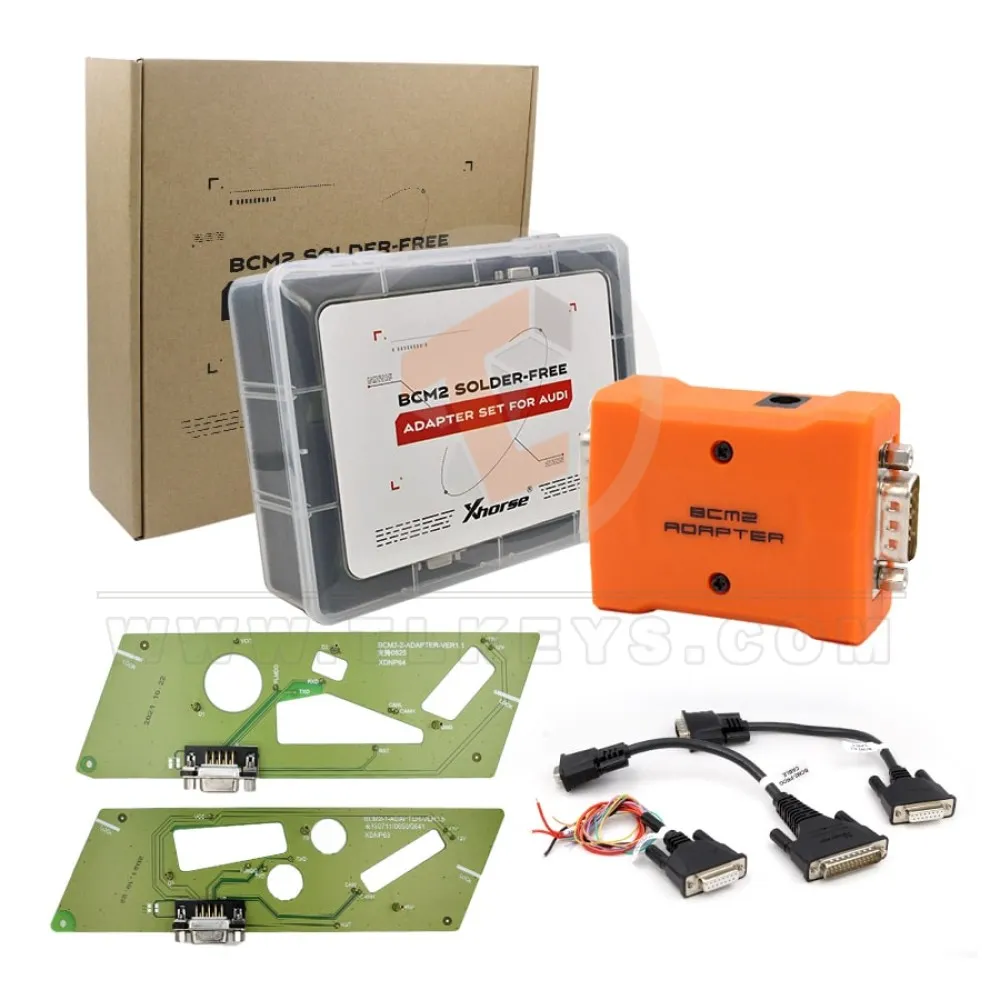

Xhorse VVDI BCM2 Solder Free Adapter Package List:

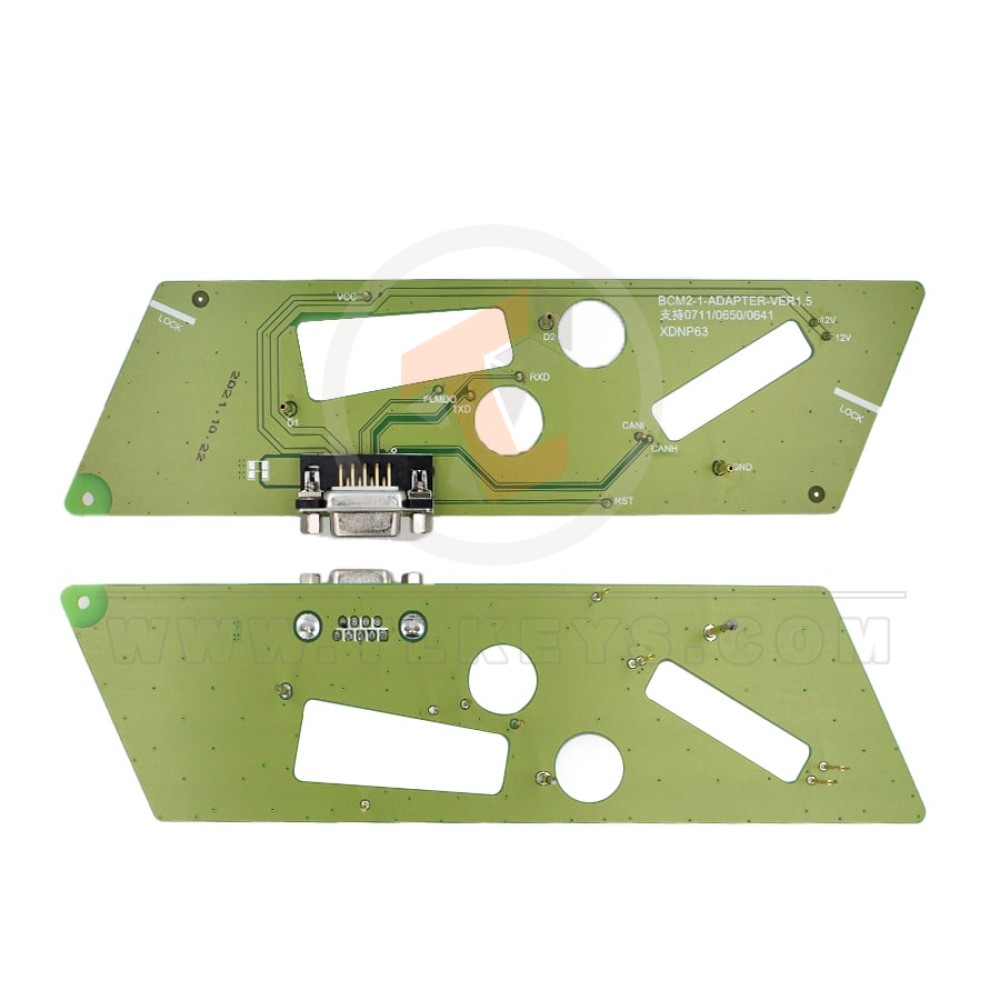

- 1 pcs* XDN63 BCM-1 Solder Free Adapter

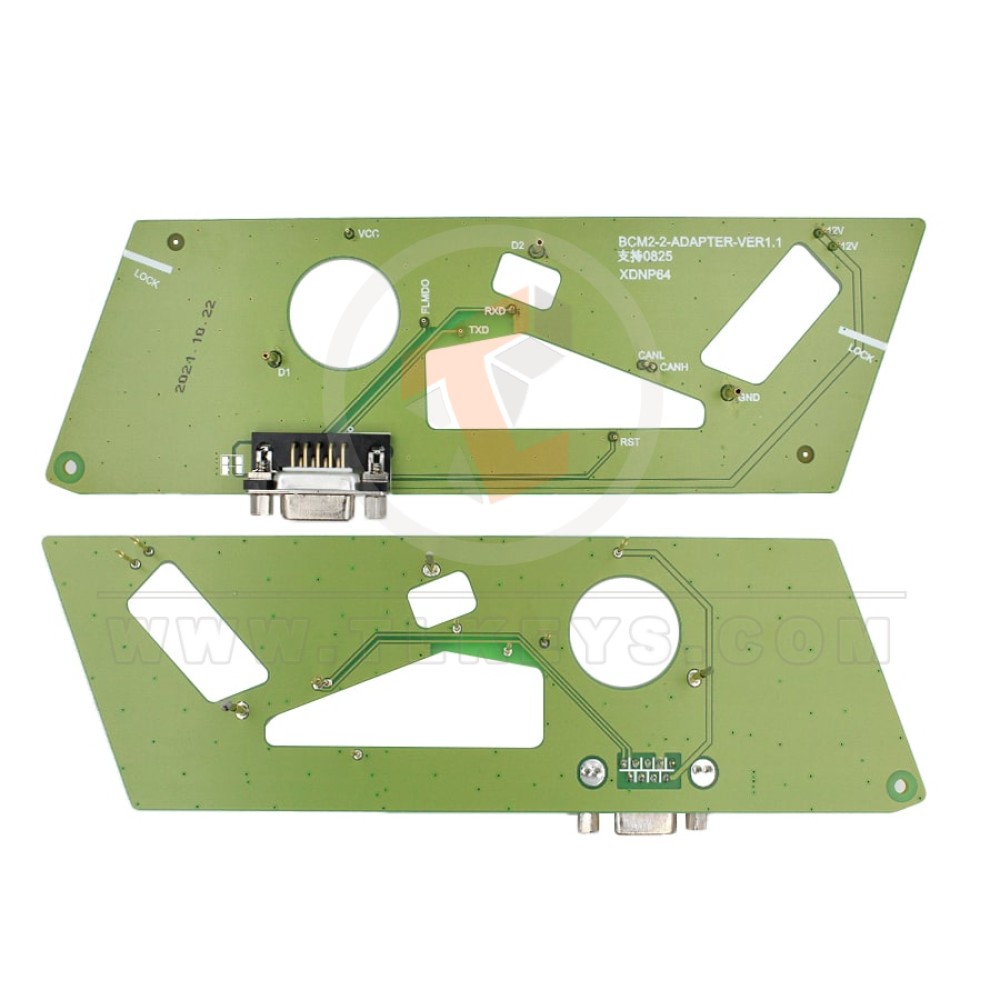

- 1 pcs* XDN64 BCM-2 Solder Free Adapter

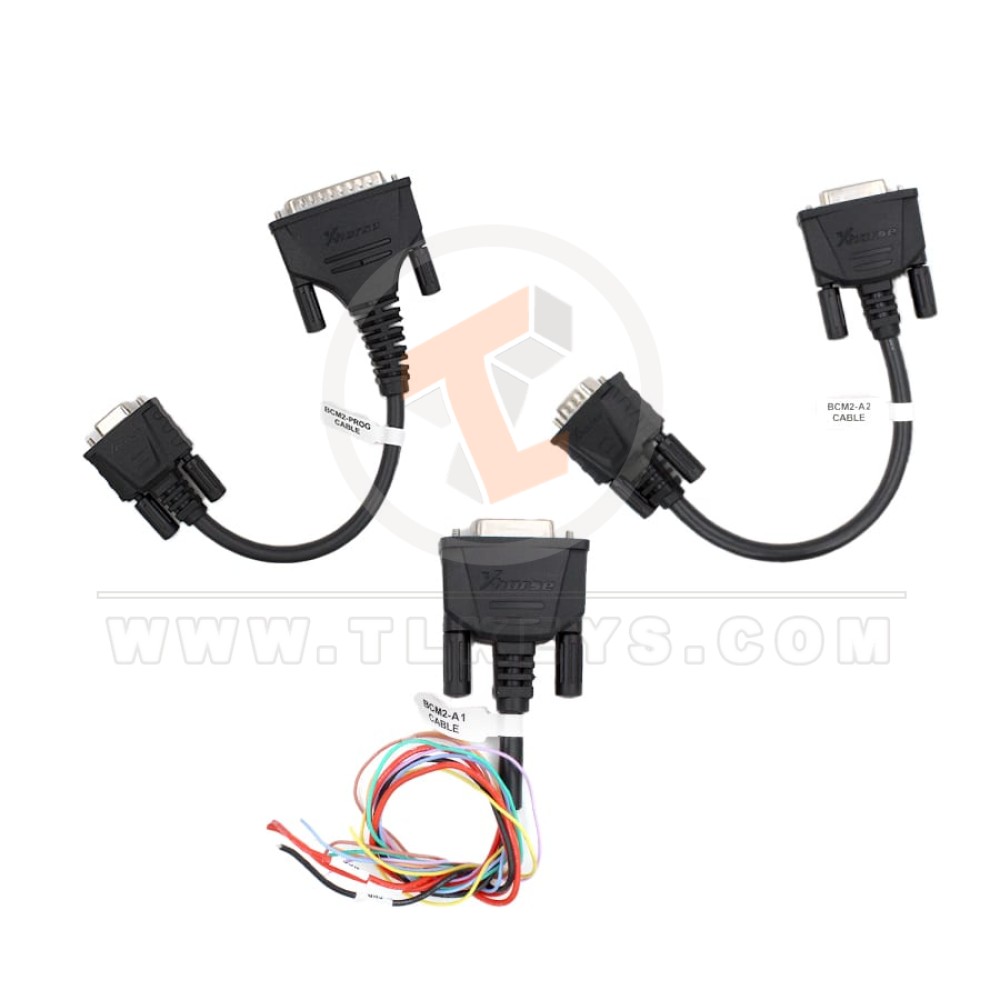

- 1 pcs* XDN67 BCM2-PROG Cable
- 1 pcs* XDN66 BCM-A2 Cable
- 1 pcs* XDN65 BCM-A1 Cable

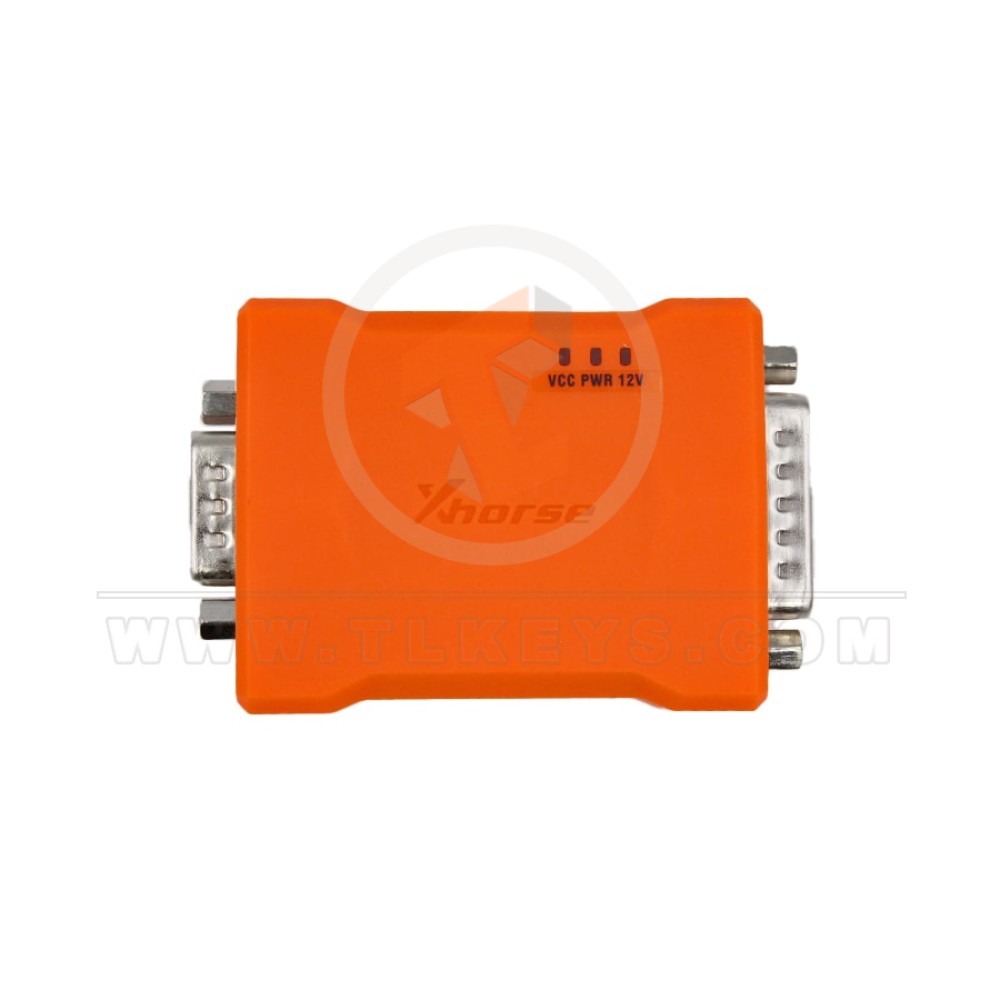

- 1 pcs* XDN62 BCM2 Adapter
