KEYS & REMOTES FOR ANY VEHICLE

Search by FCC ID or PART NUMBER
OR Vehicle Search
TL32317

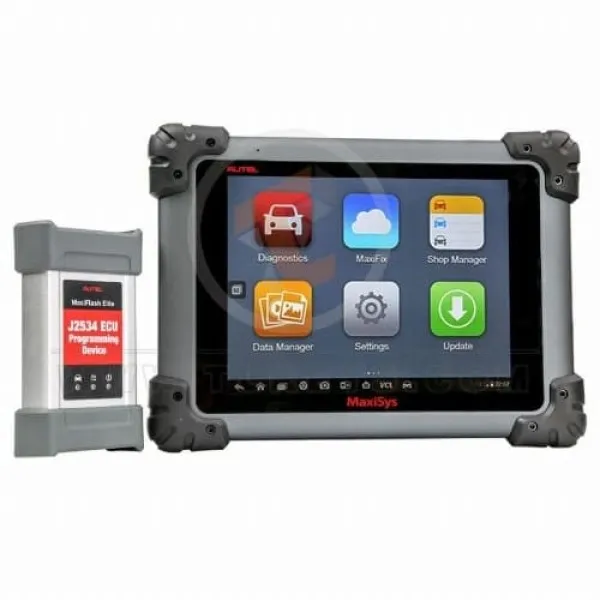

Autel MaxiSys 908s Pro Diagnostic Intelligence Device
Autel MaxiSys 908s Pro Diagnostic Intelligence Device
Autel MaxiSys 908s Pro Diagnostic Intelligence Device

MaxiSYS MS908S Pro OBD2 Bi-Directional Diagnostic Scanner And J2534 VCI

2100 $ 2100 €


TL32317
Sorry, this product is currently out of stock.
ITEM CODE TL32317
MANUFACTURER Autel
TYPE Diagnostic Intelligence Device
PART NUMBER 908S
COLOR Black and Red

Autel MaxiSys MS908S Pro Diagnostic Scan Tool with J2534 ECU Programming, Active Tests, 30+ Special Functions, All Systems Diagnostics (Same as MaxiSys Elite)

One of the devices of the MaxiSys series, MS908S Pro Diagnostic Platform is based on the revolutionary Android multitasking operating system, uses a powerful Cortex A7 + A15 Hexa-core processor, and equips with a 9.7-inch capacitive touch screen.
J2534 ECU Programming Device support can replace existing software/firmware in ECUs, program new ECUs, and fix software-controlled drivability issues and emissions issues.
MS908S Pro is the ideal tool for truly hassle-free maintenance station diagnostics by quickly, efficiently, and effectively diagnosing vehicle faults, managing customer data, and standardizing business processes.

Autel MaxiSys MS908S Pro Diagnostic Scan Tool with J2534 ECU Programming Autel Maxisys MS908S Pro MS908SP Autel Maxisys MS908SP MS908S Pro OBD2 Diagnostic Scanner ECU Programming
  • Extremely powerful Cortex A7 + A15 Hexa-core processor
  • 9.7-inch LED-backlit 2048 x 1536 glossy capacitive display with IPS technology
  • Built-in reliable 64GB internal memory for better performance
  • Built-in 8MP rear camera with autofocus and flashlight
  • The VCI connects to the main unit wirelessly with a working range of up to 70 meters
  • 802.11 a / b / g / n / ac Wi-Fi to access your favorite web resources
  • Unique ergonomic design with rubber outer protection and durable inner cover
  • Open source Android operating system for fast startup and multitasking
  • Comprehensive vehicle coverage for more than 80 American, Asian and European vehicles
  • Exceptional OEM level system coverage for all electronic systems
  • Complete capabilities of codes, live data, active testing, ECU information, adaptation, matching, etc.
  • Cloud-based data manager saves customer and vehicle records, scanner data, and technician notes
  • Built-in rechargeable Li-Polymer battery for up to 7.5 hours of continuous operation
  • Equip with J2534 ECU Programming Device to replace existing software/firmware in ECUs, program new ECUs, and fix software-controlled drivability and emissions issues

Why buy an Autel Maxisys MS908S Pro?

  • Complete general OBD2 functions
  • Lots of bi-directional (hot jobs) and system tests
  • Provides original equipment level functions (varies from model to model) such as initialization, calibration, immobilizer (not Toyota/Lexus)
  • Sometimes Autel is faster and easier to use than an OE tool
  • PCM or WIN replacement jobs at Chrysler
  • Parameter reset on Ford and Mazda
  • Ford graphical error
  • Maxisys ms908sp will likely add keys unless the OE requires NASTF login.
    If the OE requires a pin code/security code, this will also lead to Autel. Autel does not withdraw secret codes
  • It continues to work after the update subscription expires
  • No penalty for skipping updates
  • Warranty extends with each update subscription renewal
  • MS908SP comes with 1-year free online update

Autel Maxisys MS908SP Feature:

  1. Comprehensive vehicle coverage for more than 80 American, Asian and European vehicles
  2. MS908SP is easy and intuitive browsing that makes finding what you need simple and fast
  3. MS908SP open-source Android OS for fast booting and multitasking
  4. Displays live data in text, graph, analog, and digital scale for easy data review and analysis
  5. Configure display options, select triggers, records, and playback results with one-touch
  6. The cloud-based data manager saves customer and vehicle records, scanner data, and technician notes
With MaxiFlash Elite VCI (J2534 Programmer), it can replace existing ECU software and firmware, program new ECUs, and fix software-controlled drivability and emissions issues.
MS908S Pro is the ideal tool for truly hassle-free maintenance station diagnostics by quickly, efficiently, and effectively diagnosing vehicle faults, managing customer data, and standardizing business processes.

List of Autel Maxisys MS908SP vehicles:

Audi, Benz, BMW, Dacia, EU Ford, Ford, Land Rover, Mini, Opel, Peugeot, Renault, Seat, Skoda, Volkswagen, Volvo, Smart, Jaguar, Benz Sprinter, Saab, Fiat, Abarth, Lancia, Alfa Romeo, Vauxhall, Maybach, Bentley, Bugatti, Porsche, General Motors, Chrysler, Ford, Suzuki, Kia, Daewoo, Isuzu, Toyota, Subaru, Scion, Nissan, Mitsubishi, Lexus, Infiniti, Hyundai, Mazda.

Active Tests / Bidirectional Control

The Autel MS908S Pro Auto Diagnostic Tablet comes with bi-directional control for specific vehicle systems that allow you to test different systems or parts by reading ECU data, or by monitoring actuator operation, such as solenoid tests, pump or relay drive tests, Or switching between two operating states.
Note: Active tests are not universally compatible. Please send us a VIN to check compatibility first.
Note: MS908S Pro is for North and South America only, and only supports English.

ECU programming for Selected BMW & Benz Vehicles

The Autel MS908S Pro comes with the SAE J2534 Pass-Thru (J2534 Programmer) to replace existing software and firmware and program new BMW & Benz ECUs to fix software-controlled drivability and emissions issues.
Note: Please send the VIN of your BMW and Benz to verify compatibility before purchasing.
Note: Currently, none of the Autel scan tools can program vehicle ECUs other than BMW & Benz.

Advanced ECU Coding Function

An electronic control unit (ECU) coding function allows you to update the vehicle's computer software to the latest version, and re-encode adaptive data for specific components after repairs or replacements to improve driving performance, fuel efficiency, and reduce energy loss.
Available encoders vary by test vehicle, and only available ones are shown in the list.
Note: ECU programming applies to BMW and Benz vehicles only.
Note: ECU coding is not universally compatible.
Please check compatibility with us before purchasing.

25 Advanced Service and Special Functions

Autel MS908S Pro Auto Diagnostic Scan Tool With Injector Active Tests Coded EPB Oil Reset SAS
Autel MS908S Pro can perform much useful time and money-saving services and special functions such as Oil reset, EPB reset, DPF regeneration, ABS Bleed, SAS, battery registration, key programming, injector coding, power balance (for injection test), and crankshaft Position Variation Learn, EGR Relearn, control windows, doors, roof, throttle, etc.
Note: Service and special functions are not universally compatible. Please send us your VIN to check compatibility before purchasing.

Diagnostics of all Systems at the OE Level

MaxiSys MS908S Pro Diagnostic Scanner Tool with Diagnostics of All Systems at OE Level
The Autel MaxiSys MS908S Pro comes with a padded USB connection and wireless connection via MaxiVCI to prevent the inconvenience of a short cable.
As a professional auto diagnostic tool, MS908S Pro can access all available vehicle modules including but not limited to ECM, PCM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc to retrieve diagnostic fault codes and display live data in graph and text, to identify a faulty cylinder, check transmission temperature, oil temperature, and pressure, camshaft position sensor status, etc.
Note: For some old cars, when “!” appears on the display for a unit, it means that the connection between the car and the scan tool is good but the unit is not responding to the request to retrieve the fault codes.
It is not a problem with the scan tool.

Ability to Program Key Fob

The MS908S Pro key programming tool can add a new key /fob for low-quality vehicles such as Asian cars (Toyota, Honda, Nissan, Hyundai, Kia, and others), American cars such as GM, Ford, Chrysler (some cars require a special adapter).
Note: The key programming function is not universally compatible.
Please always send us your VIN to check compatibility before purchasing.

However, for BMW, Benz, VW, and other high-quality vehicles, we recommend professional IMMO & Key Programming tools such as Autel IM508 and IM608.

Auto Scan and Auto VIN Feature

The Autel MaxiSys MS908S Scanner Computer comes with an auto-scan function that can perform a comprehensive scan of all available units present to determine the causes of malfunctions.
Featuring the latest VIN-based VIN technology, it can automatically read and decode the VIN in some vehicles to shorten the vehicle selection time.
Remember that you can always select your vehicle manually for diagnostics and special functions if Auto VIN does not work on a particular vehicle.

Extended Car Coverage

The Autel MaxiSys MS908S Pro Vehicle Scanner Tablet comes with unparalleled vehicle coverage for more than 80 American, Asian and European makes and models.
With complete Autel coupling kit including CCD adapter (Chrysler-16 for Chrysler under 2003), GM/Daewoo-12, Honda-3, Nissan-14, Mitsubishi/Hyundai 12+16, Kia-20, Benz-38, BMW -20, VW/Audi 2+2, selected vehicles, MS908S Pro has expanded vehicle coverage.

Equivalent to MaxiSys Elite, but Costs Much Less

As one of the most advanced auto-diagnostics tools in the Autel MaxiSys family, the MS908S Pro has the same diagnostic, service, active/power tests two-way and ECU programming of BMW & Benz capability as the Autel MaxiSys Elite, just $1,000 less in cost.

Diagnostic Data Review and Analysis and Remote Technical Support

The Autel MaxiSys MS908S Pro scan tool comes with a live data function with which you can view live data stream and video recording function to record screen for later review.
When a problem occurs while performing diagnostics or special functions, the MS908S Pro has a Data Manager feature that allows you to upload the data log to an Autel server for analysis via Data Manager - Data Log.
And for software or update issues, please go to MaxiTools and upload the log to the Autel server and send us the serial number to follow up on the problem. MS908S Pro comes with a remote assistance feature that Autel can remotely control the scan tool through TeamViewer to collect data and help you solve the problem.

Seamless Diagnostics / Final Configurations

As the most advanced car scanning tool, MS908S Pro is equipped with advanced hardware for seamless multitasking and diagnosis, including wireless connectivity, powerful Cortex A7 + A15 Hexa-core processor, Android 4.4.2, KitKat OS, 2GB RAM & Memory 64GB internal, 9.7" LED screen with 2048x1536 resolution, 8.0MP camera with autofocus and flashlight, 11,000mAh 3.7V lithium polymer battery, etc.
Operating SystemAndroid™4.4.2, KitKat
ProcessorSamsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory2GB RAM & 64GB On-board Memory
Display9.7 inch LED capacitive touch screen with 2048x1536 resolution
ConnectivityWi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)8.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/OutputMicrophone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery11000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Low-speed, and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN

Autel MaxiSys MS908S Pro Comparison:

FunctionMaxiSysEliteMaxiSysCVMaxiSysMS908S ProMaxiSysMS908SMaxiSysMS906TSMaxiSysMS906BTMaxiSysMS906
All Systems DTC ScanTrueTrueTrueTrueTrueTrueTrue
Service FunctionTrueTrueTrueTrueTrueTrueTrue
Bi-Directional ControlTrueTrueTrueTrueTrueTrueTrue
Auto VIN TechnologyTrueTrueTrueTrueTrueTrueTrue
ECU CodingTrue/TrueTrueTrueTrue/
ECU ProgrammingTrue/True////
MaxiFix Cloud-Based Info SystemTrueTrueTrueTrueTrueTrueTrue
Data ManagerTrueTrueTrueTrueTrueTrueTrue
Shop ManagerTrueTrueTrueTrueTrueTrueTrue
Remote SupportTrueTrueTrueTrueTrueTrueTrue
Pre-scan Report & Post-scan ReportNorth America Only/North America OnlyNorth America OnlyTrueNorth America OnlyNorth America Only
Print FeatureTrueTrueTrueTrueTrueTrueTrue
Multi-language SupportTrueTrueTrueTrueTrueTrueTrue
Coverage






Domestic/Asian/European Coverage(1996-Present)TrueTrueTrueTrueTrueTrueTrue
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100/
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector KitTrueTrueTrueTrueTrueTrueTrue
Options






TPMS////True//
OscilloscopeTrueTrueTrueTrueTrueTrue/
Inspection CameraTrueTrueTrueTrueTrueTrue/
ADASTrue/TrueTrue/TrueTrue

List of Autel Maxisys MS908SP packages:

  • Main Unit MS908SP
  • USB Ethernet Adapter
  • Standard USB 2.0 Cable
  • BMW Ethernet Cable
  • Main Cable - 1.5m Long
  • Micro USB cable
  • Serial Ethernet Cable
  • AC/DC External Power Adapter
  • scissors Cable
  • Fuse Lighter
  • Cigarette Lighter
  • Adapter for Chrysler 16 (the USA only)
  • Adapter for GM / Daewoo 12
  • PSA-2. Adapter
  • Transformer for Fiat-3
  • Adapter for BMW-20
  • Benz Transformer -38
  • adapter for Kia 20
  • Adapter for Mitsubishi / Hyundai -12 + 16
  • adapter for Nissan 14
  • adapter for Honda-3
  • Benz-14 Adapter (for EU only)
  • Adapter for VW/AUDI-2+2
×
