Autel MaxiIM KM100 IMMO Key Programmer Touchscreen Tablet

Autel MaxiIM KM100 Universal Key Generator Kit Lifetime Free Update Online

MaxiIM KM100 is an advanced key fob touchscreen tablet capable of smart key generation and IMMO learning via OBD.
This 5.5-inch touchscreen Android tablet with Bluetooth VCI can program Autel IKEY as a smart key replacement for over 700 vehicles and provides IMMO programming for many vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors.
Additional innovative features include master regeneration and transponder editing for 20 supported protocols.

Autel KM100 Key Functions

• Software Autel IKEY Universal Key as a smart key replacement for over 700 vehicles
• Comprehensive coverage of IMMO key programming including BMW, Volkswagen, Toyota, Honda, and General Motors
• Powerful Android Tablet with 64GB Memory and Long Lasting Rechargeable Battery
• Industry-leading coverage of IMMO via OBD for over 90% of models
• Covering the 100 best-selling models in North America over the past 10 years
• Chip read, write, clone, frequency detection
• AutoVin vehicle identification to ensure accuracy
• Simple user interface with brief instructions
• Support 8 key chains and 37 models
• 60-second key generation (Autel Universal only)
• Chip read, write, clone, frequency detection
• Key renewal: support 36 vehicle models
• Transponder editing: support 20 categories

MaxiIM KM100 Specifications:

Dimensions:(W x H x D) 200 mm (7.9 in) x 89 mm (3.5 in) x 22 mm (0.87 in)
Weight:352.7g (0.8lb)
Screen: 5.5-inch screen with a resolution of 1280 x 720
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android 9.0
Memory: 2 GB RAM / 64 GB internal memory
Camera:8 MP
Connectivity: Wi-Fi Bluetooth 5.0, SB 2.0 Type C.
Battery:4950mAh Li-polymer battery
VCI: V200
Input:5V/2A
Sensor: ambient light sensor
MIC audio input/output: supported, Speakerphone: supported
Operating temperature: -10 to 45 degrees Celsius (14 to 113 degrees Fahrenheit)
Storage temperature: -20 to 60°C (-4 to 140°F)

Autel MaxiIM KM100 Highlights:

1. Lifetime Free Online Update
2. Global version no IP blocking problem
3. Simple operation, user-guided instructions, easy to use
4. Multi-language supported: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese
5. KM100 adopts a 1280*720 high-definition display and supports touchscreen operation, which is sensitive, convenient, and quick to use.
6. Support chip simulation for emergency use (for ID 46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.

MaxiIM KM100 Other Features:

1. Android touchscreen device
2. It contains MaxiVCI VCI200 so that you can perform key simulation and key learning after creating a key.
   You can generate the key and go directly to programming with the press of a button.
3. Use a USB cable to transfer data from another device, such as the IM608, to a laptop and from the laptop to the main gadget.
4. The main tool comes with two blank keys for you to use at your convenience.
   One has the Autel logo on the back and the other doesn't.
5. Supports the creation of an aftermarket chip, a Super Exhorse chip.
   But xt27 can only generate one time, you need to reset the chip with the xhorse tool if you want the second generation
6. The IMMO programming is very impressive. It is the same as im508 for IMMO but without a programmer.
   You can use it instead of im508 im608 in many vehicles for key programming because it is simple, easy to fill/unload, and compact, which is convenient.
7. Support Toyota 8A all keys lost and all smart keys lost without the APB112 emulator

Autel MaxiIM KM100 Key Test in EU:

Make	mode	year	FCCID	Immo type	Frequency(MHz)	Note
Ford	Mondeo	2007-2021	M3NA2C31243300	ID49	903.42
Ford	Mondeo	2007-2021	CMIIT ID:2018DJ2196	ID49	434.25
Ford	B-MAX	2012-2018	KR55WK48801	ID4D	434.25
Ford	B-MAX	2012-2018	KR5876268	ID4D	434.25
Ford	C-MAX	2010-2019	KR5876268	ID4D	434.25
Ford	Mondeo	2007-2021	CMIIT ID:2014DJ2178	ID49	868.50
Ford	Mondeo	2007-2021	M3NA2C931423	ID49	315.00
Peugeot	508	2011-2017	OEM:98105588ZD	ID4A	433.92
Peugeot	4008	2019-2021	OEM:98105588ZD	ID4A	433.92
Peugeot	5008	2019-2021	iy1dey1	ID4A	433.92
Peugeot	Traveler	2019-2021	OEM:98105588ZD	ID4A	433.92
Peugeot	Expert	2019-2021	OEM:98105588ZD	ID4A	433.92
Peugeot	508L	2014-2021	OEM:98105588ZD	ID4A	433.92
Peugeot	508	2011-2017	CMIIT:2010DJ5052/2013DP8279	ID46	433.914
Peugeot	308	2016-2019	CMIIT:2010DJ5052/2013DP8279	ID46	433.914
Peugeot	4008	2019-2021	CMIIT:2010DJ5052/2013DP8279	ID46	433.914
Kia	SORENTO	2019-2020	FCCID:TQ8-FOB-4F06 OEM:95440C6100	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2019	FCCID:TQ8-FOB-4F08 OEM:95440C5600	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2021-2022	FCCID:TQ8-FOB-4F23 OEM:95440F1300	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2021-2022	FCCID:TQ8-FOB-4F24 OEM:95440F1200	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2020+	FCCID:TQ8-FOB-4F08 OEM:95440D9100	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2019	FCCID:TQ8-FOB-4F24 OEM:95440D9600	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2019	FCCID:TQ8-FOB-4F23 OEM:95440D9610	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2019	FCCID:TQ8-FOB-4F08 OEM:95440D9500	ID47	433.92	All Keys needed for the test
Kia	SPORTAGE	2019	FCCID:TQ8-FOB-4F08 OEM:95440D9510	ID47	433.92	All Keys needed for the test
Kia	NIRO	2018-2020	FCC ID: TQ8-FOB-4F08 OEM:95440G5000	ID47	433.92	All Keys needed for the test
Kia	NIRO	2018-2020	FCCID:TQ8-FOB-4F08 OEM:95440G5100	ID47	433.92	All Keys needed for the test
Kia	NIRO	2018-2020	FCCID:TQ8-FOB-4F24 OEM:95440G5010	ID47	433.92	All Keys needed for the test
Hyundai	IONIQ	2017-	FCC ID: TQ8-FOB-4F11 OEM:95440G2000	ID47	433.92	All Keys needed for the test
Hyundai	IONIQ	2017-	FCCID:TQ8-FOB-4F11 OEM:95440G2500	ID47	433.92	All Keys needed for the test
Hyundai	IONIQ	2018-2020	FCCID:TQ8-FOB-4F11 OEM:95440G2010	ID47	433.92	All Keys needed for the test
Hyundai	IONIQ	2019-2021	FCCID:TQ8-FOB-4F11 OEM:95440G2110	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2016-	FCCID:TQ8-FOB-4F11 OEM:95440D3100	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2019-2020	FCCID:TQ8-FOB-4F11 OEM:95440D3510	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2015+	FCCID:TQ8-FOB-4F11 OEM:95440D3000	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2019	FCCID:TQ8-FOB-4F11 OEM:95440D3520	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2018	FCCID:TQ8-FOB-4F11 OEM:95440D3110	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2018	FCCID:TQ8-FOB-4F11 OEM:95440D3010	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2019	FCCID:TQ8-FOB-4F11 OEM:95440D3500	ID47	433.92	All Keys needed for the test
Hyundai	TUCSON	2019	FCCID:TQ8-FOB-4F11 OEM:95440D7000	ID47	433.92	All Keys needed for the test
Hyundai	KONA	2018-	FCC ID: TQ8-FOB-4F18 OEM:95440J9000	ID47	433.92	All Keys needed for the test
Hyundai	KONA	2019-2020	FCC ID: TQ8-FOB-4F19 OEM:95440J9101	ID47	433.92	All Keys needed for the test
Hyundai	SANTAFE	2019-	FCC ID: TQ8-FOB-4F19 OEM:95440S1100	ID47	433.92	All Keys needed for the test
Hyundai	SANTAFE	2019-2021	FCC ID: TQ8-FOB-4F19 OEM:95440S1000	ID47	433.92	All Keys needed for the test
Hyundai	SANTAFE	2018-2020	FCC ID: TQ8-FOB-4F19 OEM:95440S2000	ID47	433.92	All Keys needed for the test
Hyundai	SANTAFE	2019-2021	FCCID:TQ8-FOB-4F29 OEM:95440S1050	ID47	433.92	All Keys needed for the test
Hyundai	SANTAFE	2020	FCCID:TQ8-FOB-4F31 OEM:95440S2200	ID47	433.92	All Keys needed for the test
Hyundai	i10	2010-2020	FCCID:TQ8-FOB-4F04 OEM:95440B9500	ID46	433.92	All Keys needed for the test
Hyundai	i20	2019	FCCID:TQ8-FOB-4F04 OEM:95440B4500	ID46	433.92	All Keys needed for the test
Hyundai	i20	2015-2019	FCCID:TQ8-FOB-4F04 OEM:95440C7000	ID46	433.92	All Keys needed for the test
Hyundai	i20	2018	FCCID:TQ8-FOB-4F04 OEM:95440C7100	ID46	433.92	All Keys needed for the test
Hyundai	i20	2011-2017	FCCID:TQ8-FOB-4F04 OEM:95440C8000	ID46	433.92	All Keys needed for the test
Hyundai	Tucson	2011-2020	FCCID:TQ8-FOB-4F03 OEM:954402S610	ID46	433.92	All Keys needed for the test
Kia	Ceed	2010-2020	FCCID:TQ8-FOB-4F02 OEM:95440A2100	ID46	433.92	All Keys needed for the test
Kia	Ceed	2010-2020	FCCID:TQ8-FOB-4F02 OEM:95440A2200	ID46	433.92	All Keys needed for the test
Hyundai	i10	2020+	FCCID: SVI-BR2FGE03	ID4A	433.92	All Keys needed for the test
Kia	Sorento		FCC ID: SY5MQ4FGE07	ID4A	433.92	All Keys needed for the test
Kia	Sorento	2021	FCC ID: SY5MQ4FGE04	ID4A	433.92	All Keys needed for the test
Hyundai	ix20	2011-2014	FLACCID: SVIMDFEU04	ID46	433.96	All Keys needed for the test
Hyundai	i30	2010-2016	FLACCID: SVIMDFEU04	ID46	433.96	All Keys needed for the test
Kia	Sportage	2010-2020	FLACCID: SVIMDFEU04	ID46	433.96	All Keys needed for the test
Mitsubishi	RVR (ASX/Outlander Sport)	2011-2017		ID46	433.92
Mitsubishi	Outlander	2018		ID46	315.01
Renault	Koleos	2018		ID4A	433.92

Autel MaxiIM Comparison

Function	Autel MaxiIM IM508	Autel MaxiIM IM608	Autel MaxiIM KM100
Universal Transponder & Key Generation	No	No	Yes
Transponder Simulation Editing & Cloning	No	No	Yes
Ignition Coil Detection	No	No	Yes
Vehicle Diagnostics	Yes, the Basic function	Yes	No
Vehicle Service Functions	Yes	Yes	No
IMMO Function via Programmer	Yes	Yes	No
Frequency Reading	Yes	Yes	Yes
Frequency Detection	Yes	Yes	Yes
Key Unlocking/Key Renew	Yes	Yes	Yes
Immobilizer Data Processing	Yes	Yes	Yes
IMMO in Open OBD mode	Yes	Yes	Yes

How is the key generated via the Autel KM100?

1. Automatically scan the VIN code to get vehicle information
2. Obtain the model information by scanning the VIN barcode on the nameplate
3. Scan the license plate number to confirm the form, if you can't scan it, you need to enter it manually
4. PLC V200 Bluetooth picks up the car, after the remote control is generated, you can directly select the IMMO function to match the key, without having to refer to the main interface to select the IMMO function, and then re-select a model.

Frequently Asked Questions About Autel KM100

Q: Is it compatible with other brands of chips or switches?
A: Chip: support original chip, factory auxiliary chip, such as xhorse, KD; Key: Autel key support only (continued)

Q: How is it activated? Do you need to activate it or not?
A: Create an AUTEL account online, link your KM100 to activate it, and use the same method as other AUTEL tablets.
You can click here. For the activation video, we will upload to youtube.

Q: Is the matching KM100 Bluetooth connector compatible with the Autel MaxiVCI VCI 200?
A: It is not universal.

Q: How many years is the upgrade free? Or is it free for life?
A: Currently, a lifetime free upgrade.

Q: Custom chip generation?
A: It supports sub-factory chips, such as the xhorse super chip, but it can only be created once on the KM100.
If you want to use the super chip twice, you need to reset the super chip with the xhorse device.

Q: When I get it is not Spanish, how do I do it?
A: Provide us a serial number when you get it, and we will ask the Autel team to open Spanish for you.

Q: What is the version now?
A: You can check it out.

MaxiIM KM100 Specification:

Screen	5.5-inch screen with 1280 x 720 resolution
Processor	Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System	Android 9.0
Memory	2GB RAM/64GB onboard memory
Camera	8 megapixels
Connection	Wi-Fi Bluetooth 5.0 USB 2.0 type C
Battery	4950mAh lithium-polymer battery
VCI	V200
Input	5V/2A
Sensor	Ambient light sensor
Audio Input/Output	MIC: Supported Speaker: Supported
Operating Temp	-10 to 45°C (14 to 113°F)
Storage Temp	-20 to 60°C (-4 to 140°F)

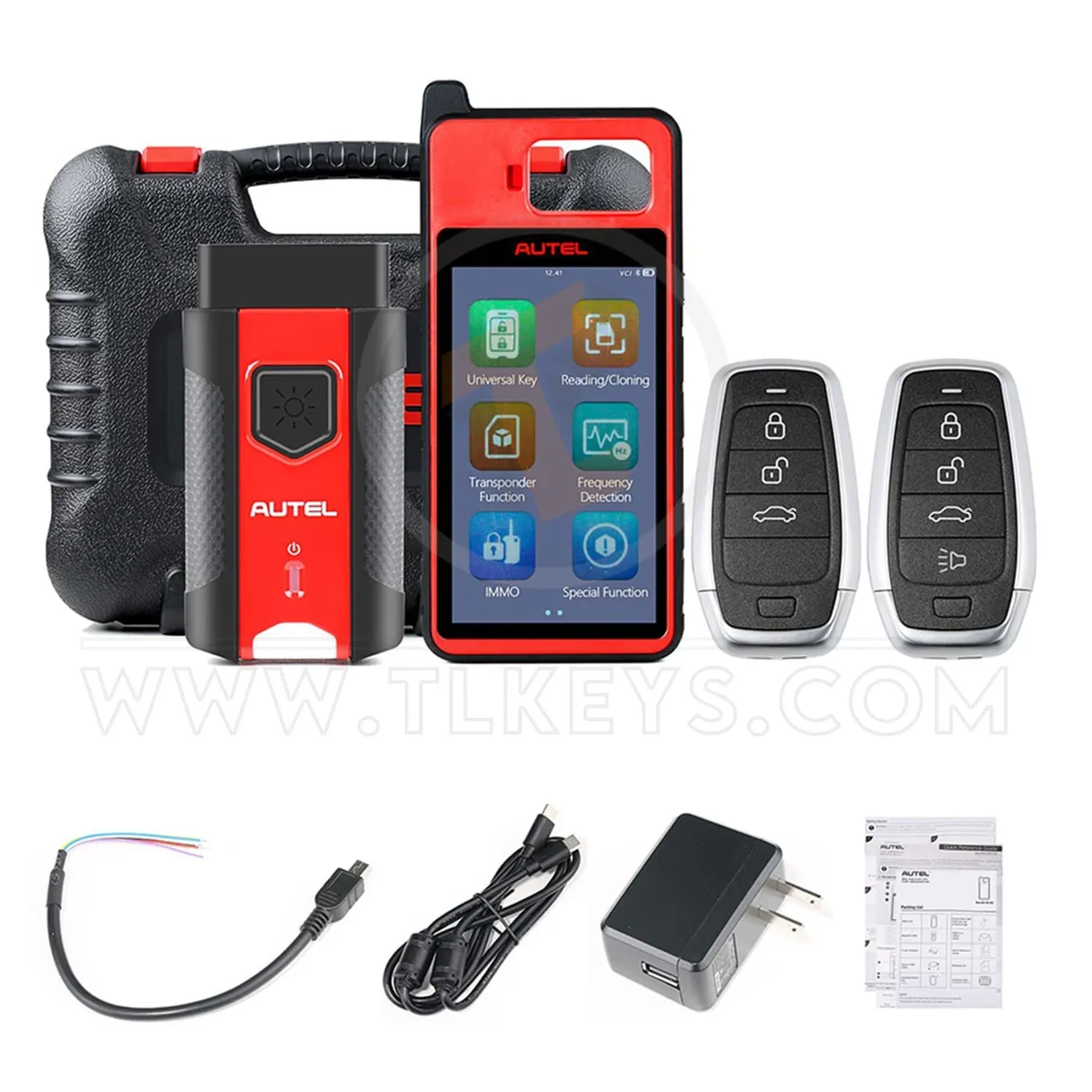

Autel MaxiIM KM100 Package List:

• 1pc x KM-100 Universal Key Generator
• 1pc x OBD Adapter
• 2pcs x Universal Keys
• 1pc x Hard Shell Carrying Case
