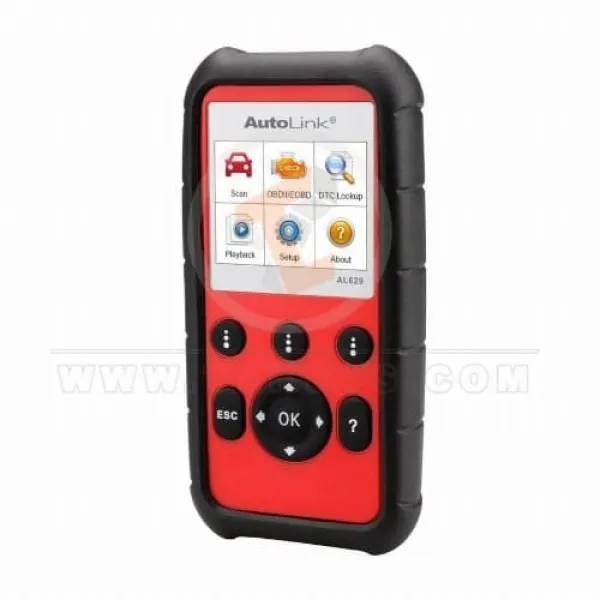

Autel Autolink AL629
OBD2/CAN ABS/SRS Transmission System Code Scanner
- SKU: TL32324
-
Category:
Key Programming - Diagnostics Tools
- MANUFACTURER: Autel
Attributes
| weight | 0.25 KG |
|---|
nn
The ABS/SRS/Engine/Transmission + CAN OBDII AutoLink AL629 is built to help you to determine why the Malfunction Indicator Light or the ABS/SRS warning light is on. Supporting all 10 test modes of OBDII test, AL629 provides you a complete diagnosis. A wide range of European, US and Asian vehicles are covered by AL629, including GM, Ford, Mazda, Toyota, Lexus, Scion, Suzuki, Peugeot, Citroen, Fiat, Abarth, Lancia, Alfa, Honda, Acura, Subaru, Nissan, Infiniti, Chrysler, Renault, Dacia, Land Rover, Jaguar, VW, Audi, Bugatti, Skoda, Seat, Bentley, Volvo and Porsche, etc.
n
nnn
Description
Reads and erases DTCs for ABS, SRS, Engine and Transmission on most 1996 and newer major vehicle models
Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Reads, stores and plays back live PCM data stream and live sensor data
Retrieves vehicle information (VIN, CALID and CVN)
Views freeze frame data
Graphs data
TF memory card for data backup and software update
Multilingual support – English, Spanish, French, etc.
2.8’’ LCD with 320X240 resolution
Internet updatable via USB
Prints data via PC
nn
Additional information
| Display |
2.8-inch LCD (320 x 240 dpi) |
|---|---|
| Connectivity |
USB mini 2.0 OBD II DB15 |
| Operating Temp. |
-10°C to 60°C (14°F to 140°F) |
| Storage Temp. |
-20°C to 70°C (-4°F to 158°F) |
| External Power |
8.0 to 18.0 V power provided via vehicle battery |
| Dimensions (LxWxH) |
182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”) |
| Net Weight |
247 g (0.544 lb.) |
